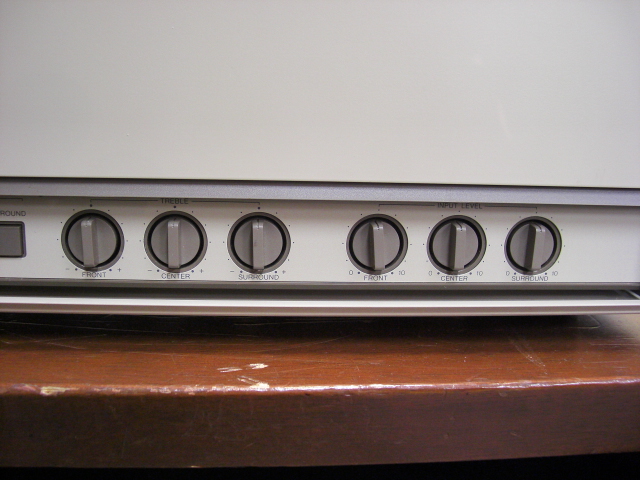

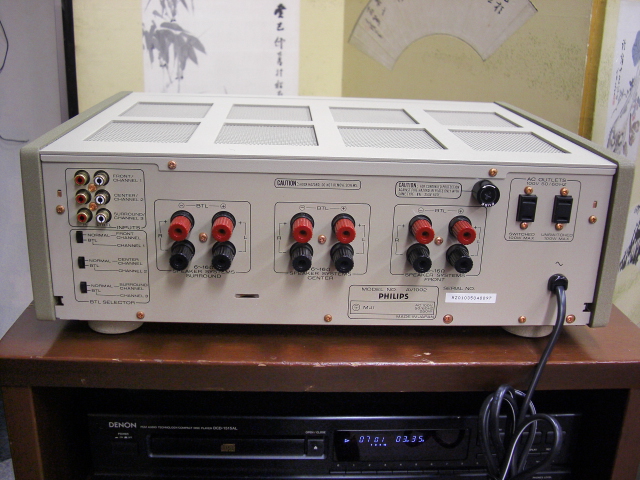

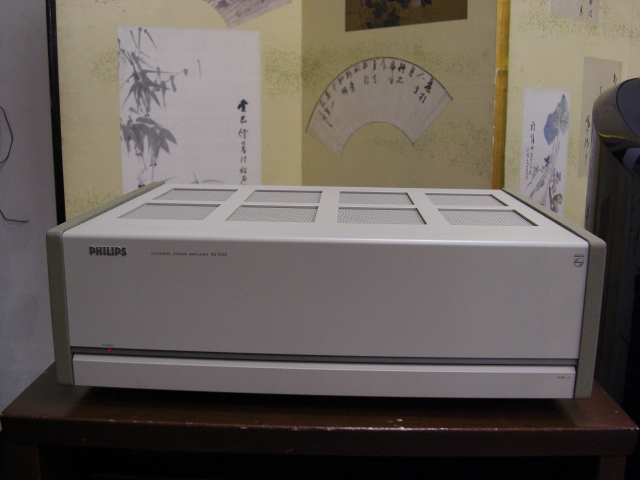

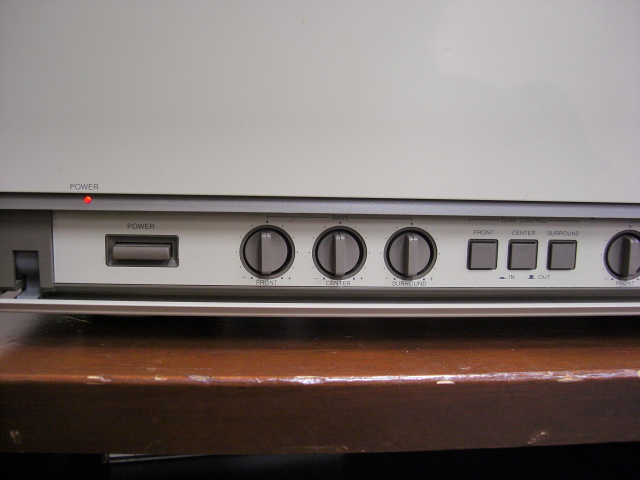

Specifications Philips AV1002 6 channel power amplifier

Rated output:
Normal connection
Front Channel (40W+40W, 20Hz - 20kHz) Total harmonic distortion: 0.03% (8 Ohm)
Center Channel (40W+40W, 20Hz - 20kHz) Total harmonic distortion: 0.03% (8 Ohm)
Surround Channel (40W+40W, 20Hz - 20kHz) Total harmonic distortion: 0.03% (8 Ohm)

BTL connection
Channel 1 (80W, 20Hz - 20kHz) Total harmonic distortion: 0.03% (8 ohm)
Channel 2 (80W, 20Hz - 20kHz) Total harmonic distortion: 0.03% (8 ohm)
Channel 3 (80W, 20Hz - 20kHz) Total harmonic distortion: 0.03% (8 ohm)

Rated input level (Normal connection): 1v rms
Frequency characteristics
Normal connection (10Hz - 100kHz): -1dB
BTL connection (10Hz - 80kHz): -1dB
Signal to noise ratio
Normal connection (IHF-A): 110dB
BTL connection (IHF-A): 104dB

Damping factor (1kHz): >100

Power supply: AC220V, 50/60Hz
Power consumption (rated output): 500W
Dimensions (WxHxD): 454x150x339mm
Weight: 18.5kg

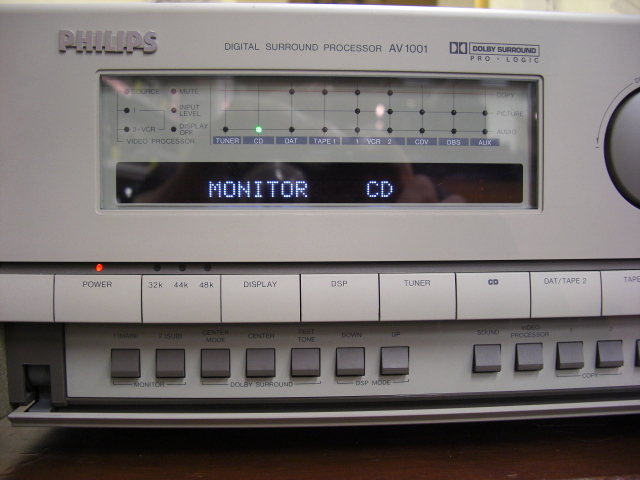

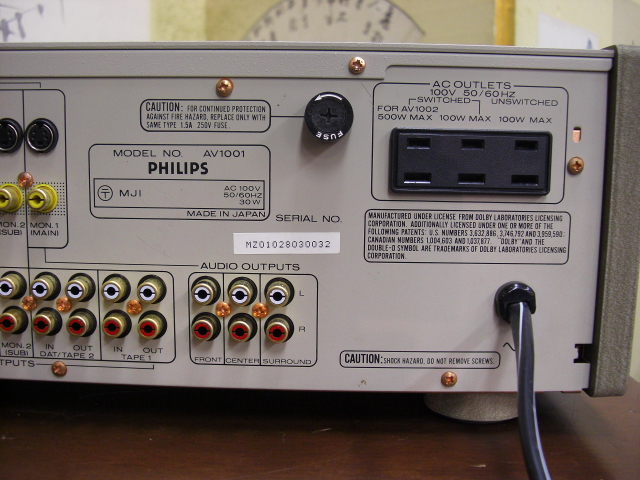

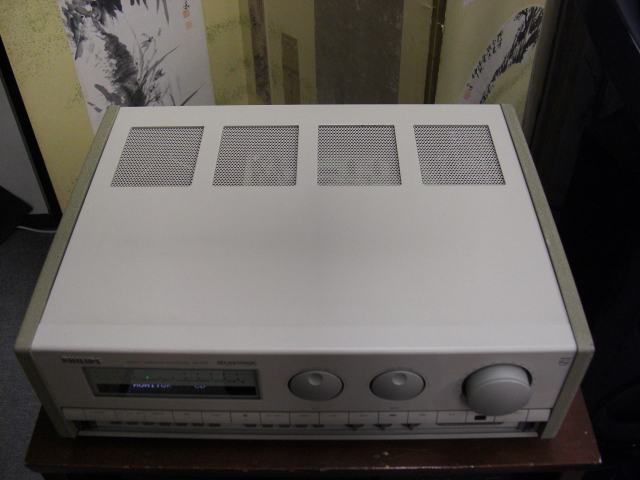

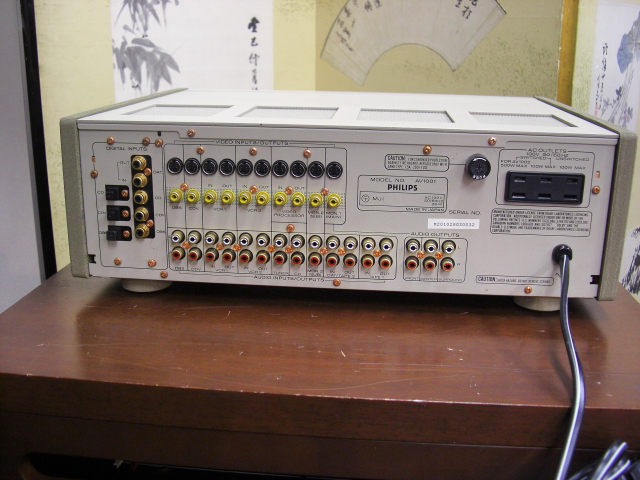

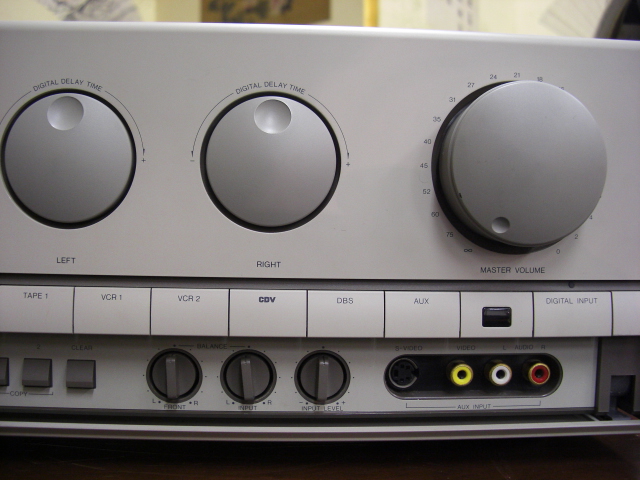

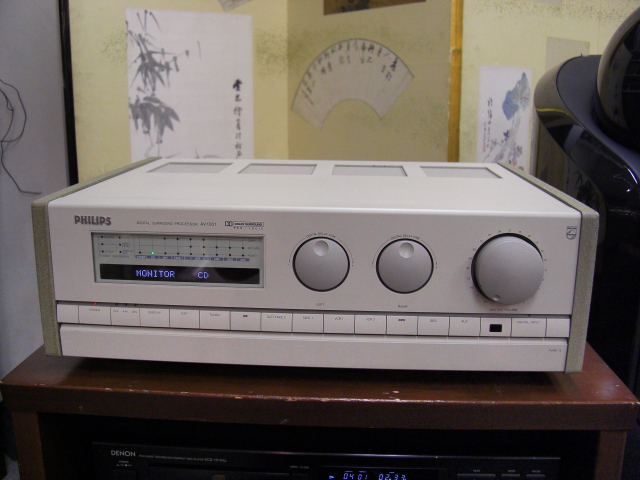

Specifications Philips AV1001 digital surround processor

Audio
Input sensitivity / Input impedance: 150mV / 50kOhm
Output level / Output impedance: 2.0V / 600Ohm
Total harmonic distortion: 0.003%
Separation: 40dB / 10kHz
Crosstalk: 90dB / 10kHz
Frequency characteristics: 10Hz - 60kHz (-3dB)
Noise
Vol min: 10µV
Vol max: 200µV
Signal to noise ratio: 90dB

Video
Input & output level / input & output impedance
Video terminal: 1Vp-p / 75Ohm
S terminal Y signal (luminance): 1Vp-p / 75Ohm
C signal (chroma): 0.28Vp-p / 75Ohm
Frequency characteristics: 10Hz - 10Mhz (-1dB)
Signal to noise ratio: 65dB
Crosstalk: 50dB

Digital
Input level
Coaxial: 0.5Vp-p
Optical: 19dBm
Output level
Coaxial: 0.5Vp-p
Frequecny characteristics
32kHz: 10Hz - 15kHz
44kHz: 10Hz - 20kHz
48kHz: 10Hz - 22kHz
Distortion 44kHz: 0.005%

DSP
Delay time: 1 - 99msec
Reverb time: 0.2 - 2.5sec

Power supply
[U] version: AC120V, 60Hz
[/40G) version: AC220V, 50/60Hz
Power consumption: 30W
Dimensions (WxHxD): 454x150x339mm
Weight: 13.5kg
Accessoires: Audio pin cord (1m): 3



The Marantz version, the Marantz AV-95C and AV-95M:
