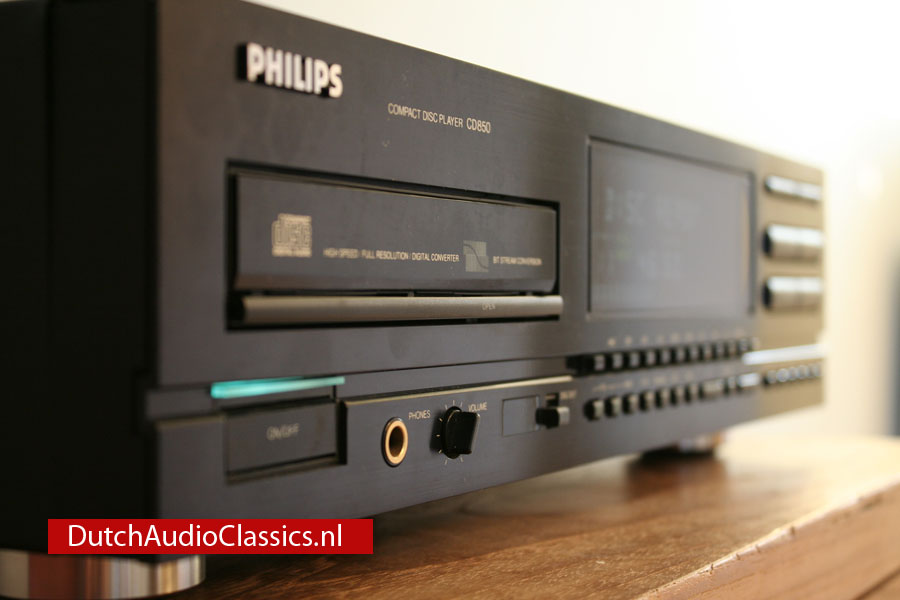

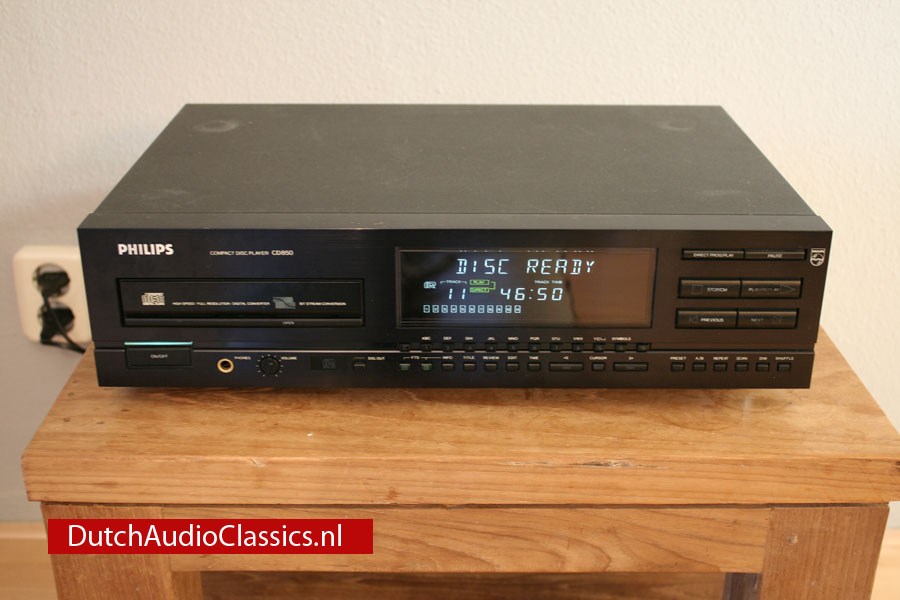

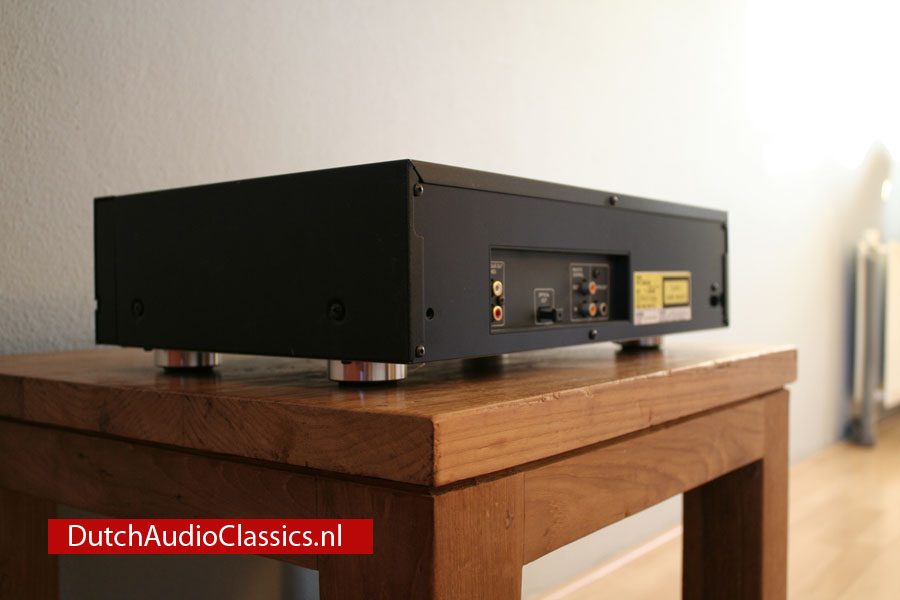

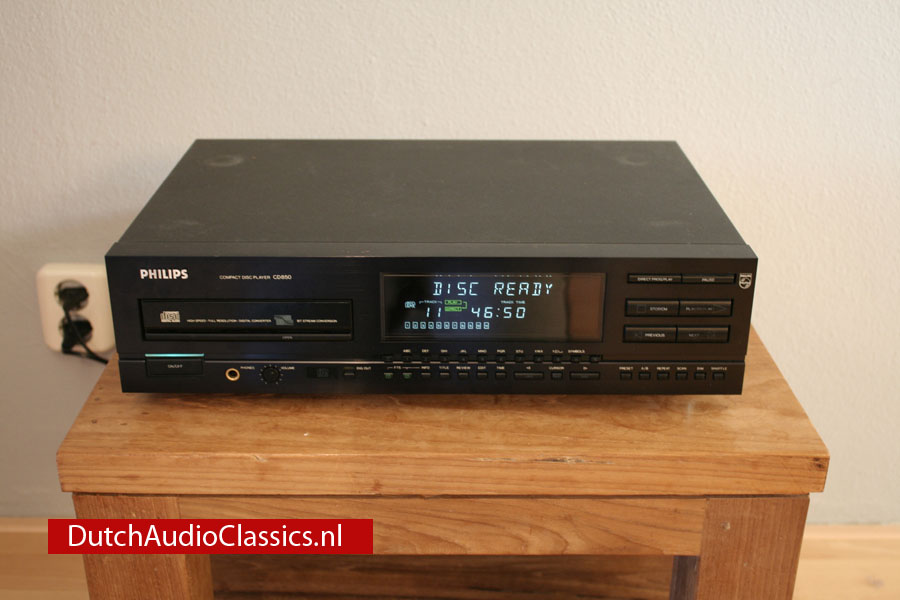

Specifications Philips CD850

Line output
Number of channels: 2
Output voltage: 2Vrms +/- 2dB
Unbalance Left-Right: max 0,6dB
Output resistance: 200Ohm
Amplitude linearity: max +/- 0,1dB from 20Hz to 20kHz
Phase non-linearity: max +/- 0,5º from 20Hz to 20kHz
Signal to noise ratio: min 90dB from 20Hz to 20kHz
Dynamic range: min 94dB from 20Hz to 20kHz
Total harmonic distortion + noise: min 84dB from 20Hz to 20kHz
Intermodulation distortion: min 84dB from 20Hz to 20kHz
Out-band attenuation: min 60dB
Channel separation: min 90dB from 20Hz to 20kHz
Muting during random access: min 90dB from 20Hz to 20kHz
Automatic switched de-emphasis with time constants: 15/50us

Optical read-out system
Laser type: Semiconductor AlGaAs
Wave length: 780nm +/-20nm
Light output (c.w.): 0,4mW +/-0,04mW

Headphone

Output voltage: max 7,5 Vrms +/- 2dB
Unbalance Left-Right: max +/- 0,2dB
Output resistance: 150Ohm
Load impedance range: 32 Ohm to 600 Ohm
Output power:
max 50mW into 32 Ohm load
max 90mW into 150 Ohm load
max 50mW into 600 Ohm load
Signal to noise ratio: min 90dB
Dynamic range: min 90dB from 20Hz to 20kHz
Total harmonic distortion + noise: min 84dB from 20Hz to 20kHz
Intermodulation distortion: min 84dB from 20Hz to 20kHz
Channel separation: min 75dB from 20Hz to 20kHz

Dimensions and weight
Tray closed (wxdxh): 420x280x90/104mm
Tray open (wxhxd): 420x423x90/104mm
Weight: 5kg

General
Mains voltage: 220, 240Volt (+/-10%)
Mains frequency: 50-60Hz
Mains voltage selection:
By soldering (220/240 Volt-version)
By changing transformator (110/127 Volt-version)
Power consumption mains, operated: 16W
