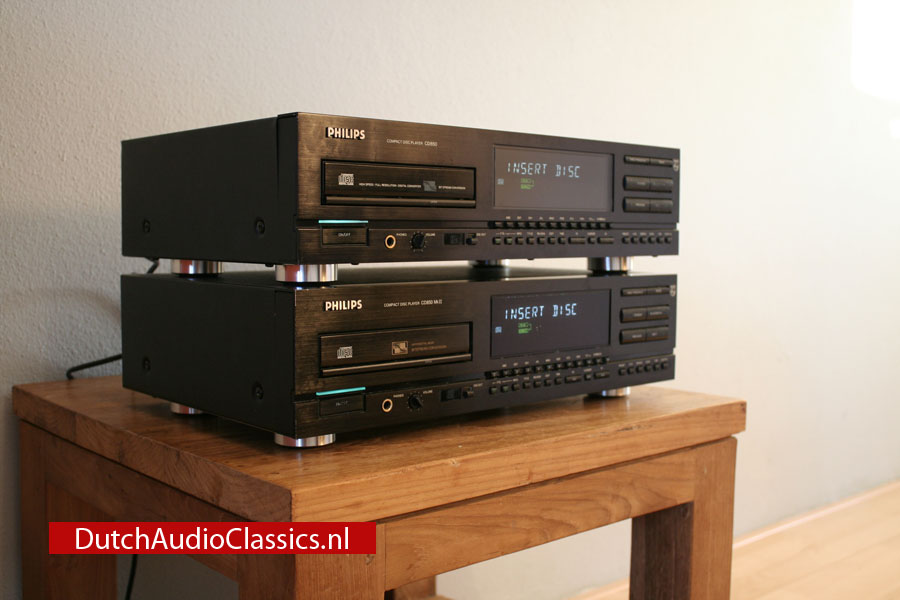

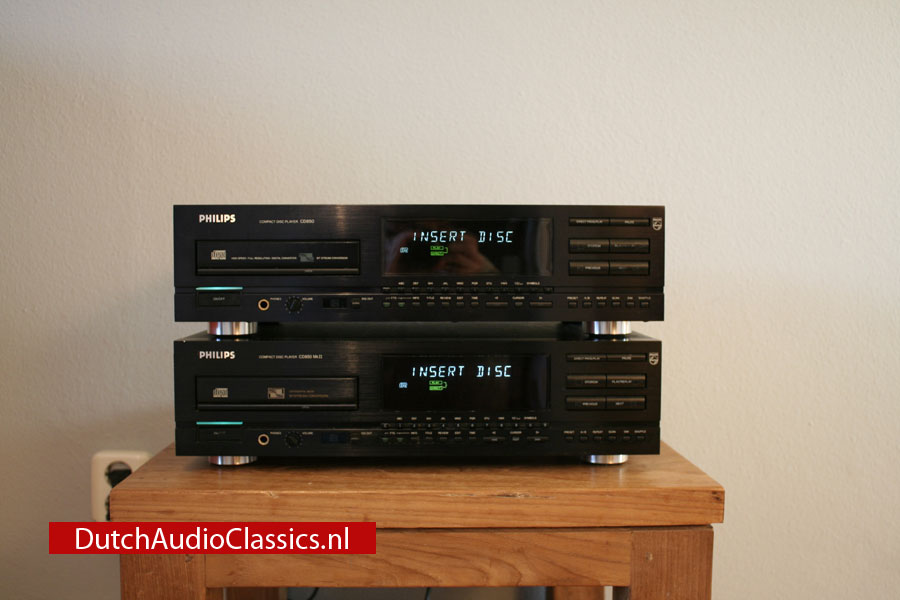

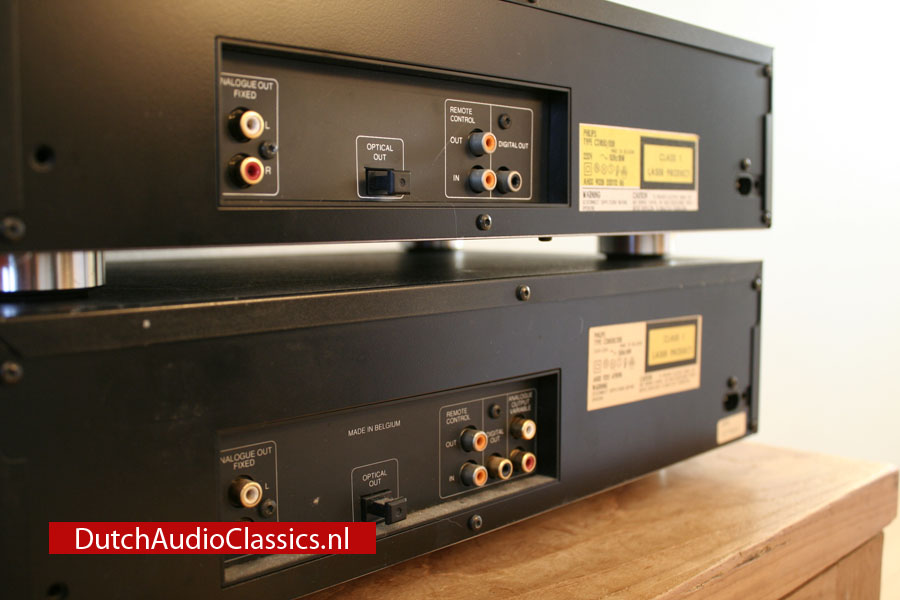

Philips CD850 mkII cdplayer

Specifications Philips CD850mk2

Line output (Fixed and Variable)
Number of channels: 2
Output voltage: 2Vrms +/-1,5dB
Unbalance left right: max +/-0,6dB
Output resistance: 200 Ohm
Amplitude linearity: max +/-0,2dB from 20Hz to 20kHz
Phase non-linearity: max from 20Hz to 20kHz
Signal to noise ratio: min 95dB from 20Hz to 20kHz
Dynamic range (-60dB): min 92dB from 20Hz to 20kHz
Total harmonic distortion + noise: min 88dB from 20Hz to 20kHz
Intermodulation distortion: min 88dB from 20Hz to 20kHz
Output attenuation: min 60dB
Channel separation: min 100dB from 20Hz to 20kHz
Automatic switched de-emphasis with time constant: 10/50us
Non-linearity on -90dB: +/-2dB

Optical read-out system
Laser type: Semiconductor AlGAas
Wavelength: 780nm +/-20nm
Light output (c.w.): 0,4mW +/- 0,04mW

Variable headphone
Output voltage: max 7,5Vrms +/-2dB
Unbalance left-right: max +/-0.6dB
Output resistance: 150 Ohm
Load impedance range: 32 Ohm to 600 Ohm load
Output power:
max 50W into 32 Ohm load
max 90mW into 150 Ohm load
max 50mW into 600 Ohm load

Dimensions and weight
tray closed (wxdxh): 420x280x90/104mm
tray open (wxhxd): 420x423x90/104mm
weight: 6,3kg

General
Mains voltage /20B: 220V (+/-10%)
Mains voltage /25B: 240V (+/-10%)
Mains voltage /21B /33B: 110V-127V-220V-240V (+/-10%) Selectable by voltage adapter
Mains frequency: 50Hz
Mains voltage selection: See Circuit Diagram Power Supply
Power consumption mains, operated: 16W

Click photo to enlarge
