Features Marantz PM14
- Rigid, die-cast aluminium casing reduces risk of vibration and electro-magnetic radiation; New HDAM and active volume control with feedback minimise noise at normal listening levels

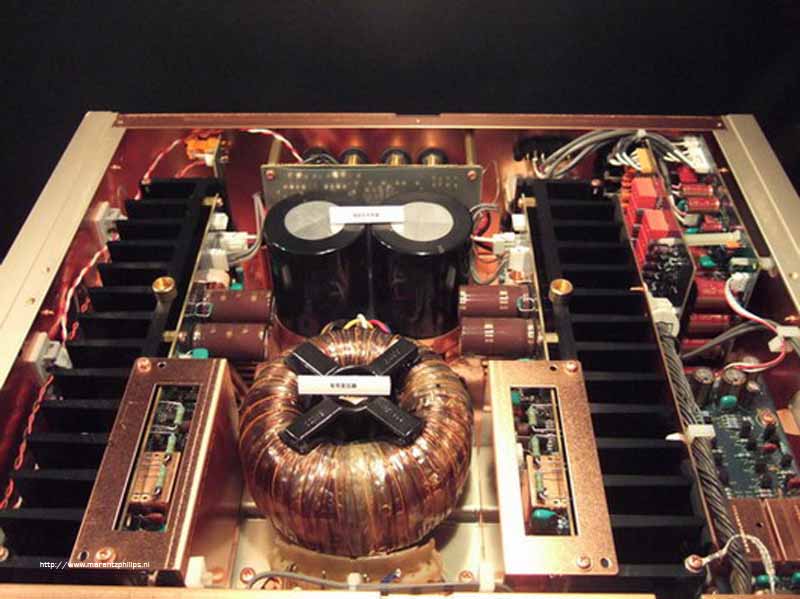

- Single push-pull power amplifier block with short symmetrical signal paths, independent L/R heat sinks and current feedback ensures fast dynamic performance and accurate stereo imaging
- Low impedance wide bandwidth power supply acts as limitless reserve of energy to drive even low impedance speakers with ease (a massive 190 Watts RMS into 4-ohm loads)

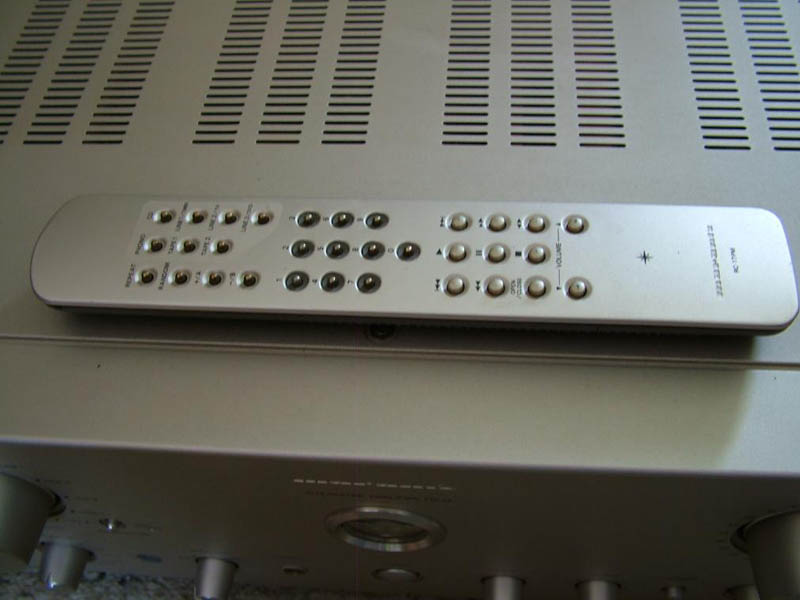

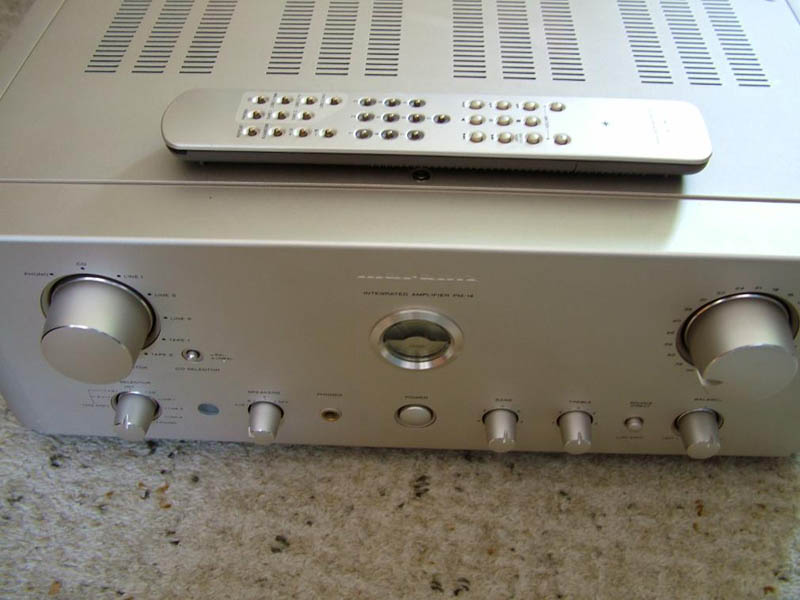

- D-BUS connection and system handset permit full remote operation in all-marantz system

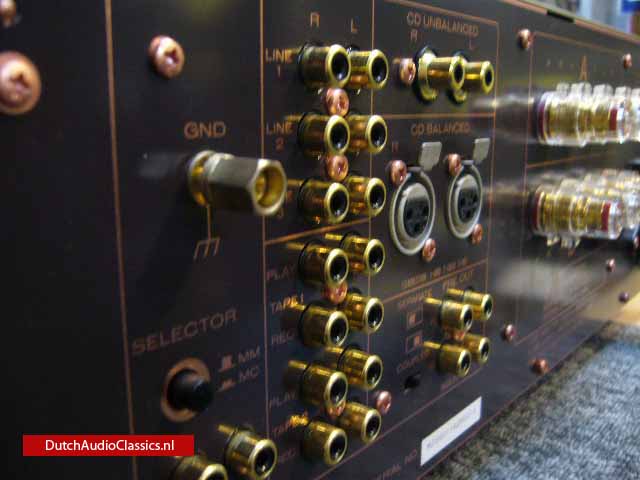

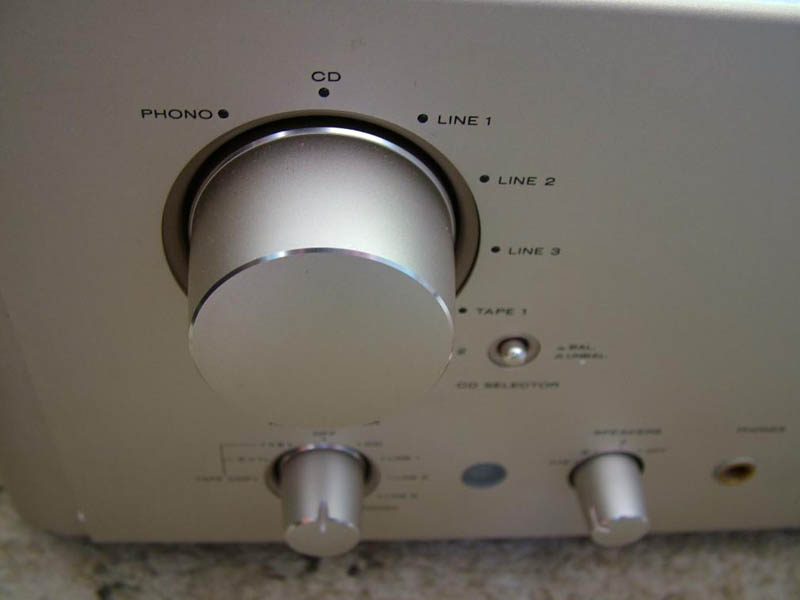

- Five source inputs, including moving magnet/moving coil phono
- Bass and treble tone control with high fidelity source direct option

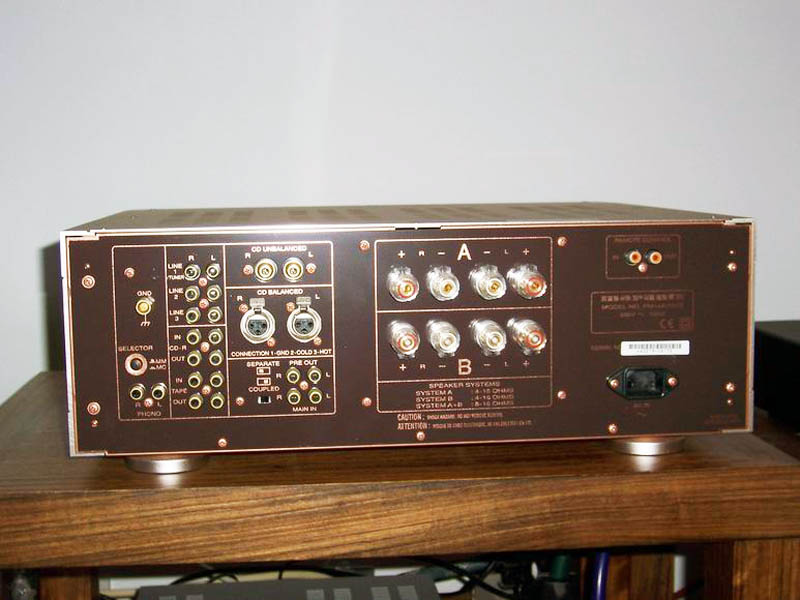

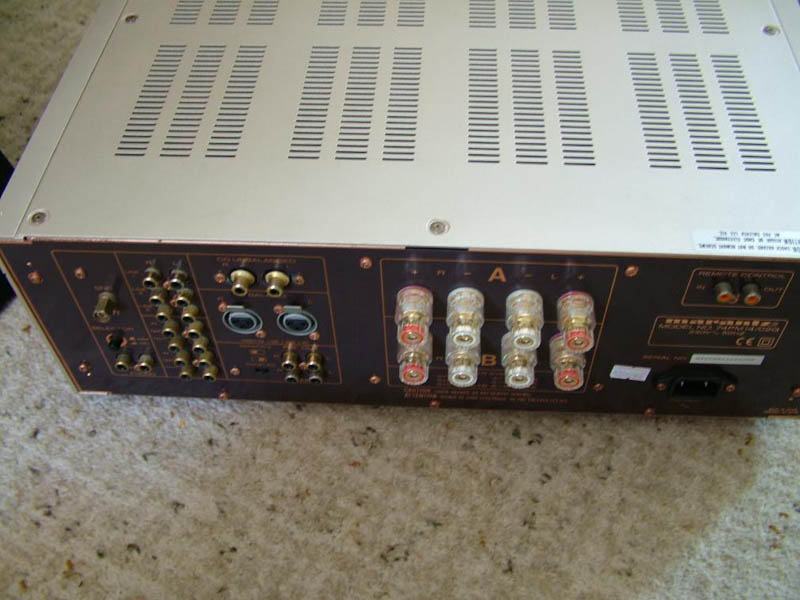

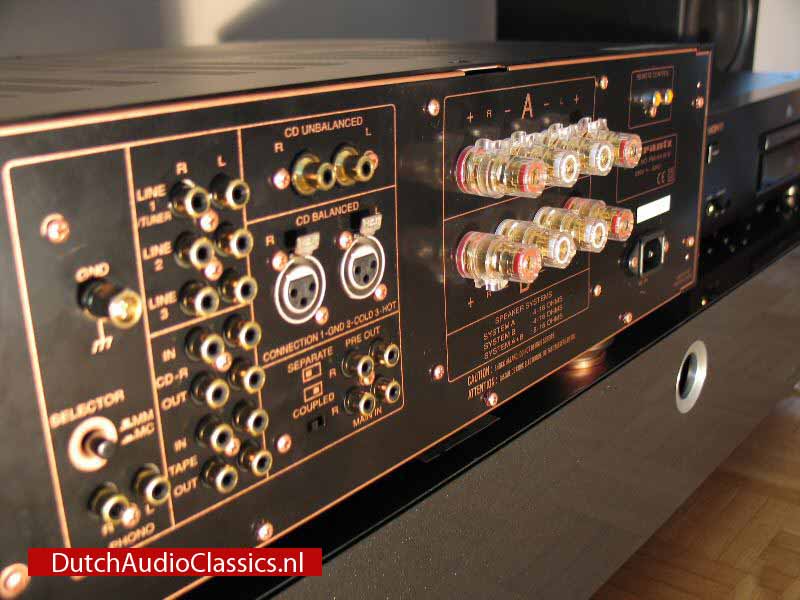

- Two sets of high-grade WBT speaker terminals for bi-wiring or multi-room
- Non-tarnishing gold-plated terminals
- Record out selector for listening to one source while recording from another
- Tape monitor function for monitoring recorded sound quality

Specifications Marantz PM14
RMS power into 8/4 ohms: 110/190W
DIN power into 8/4/2 ohms: 138/220/290W
IHF dynamic power into 8/4/2 ohms: 148/250/294W
Total harmonic distortion: 0.01%
Damping factor: 150
Signal to noise CD/phono (mm/mc): 110/90/76 dB
Frequency range: 5 Hz - 60 kHz (+0, -1dB)
Channel separation (1kHz/10kHz): >74/>66dB
Cabinet dimensions (wxhxd): 458x146x410mm
Weight: 23kg
