Marantz pm80 mkII SE
Interesting links:
Specifications Marantz PM80 mkII SE
Power output
RMS 8 ohms (20-Hz - 20kHz): 100/25W (Class A)
DIN 8 ohms/4ohms: 110/160W
IHF dynamic power
8 ohms / 4 ohms / 2 ohms: 135/220/340Wv THD at 8 ohms RMS rated output: 0.006%
Intermodulation distortion: 0.006%
Damping factor: 120
Magnetic cartridge input Input sensitivity impedance: 2.7mV / 47 k ohm
Accuracy of frequency response to RIAA: 0.3dB
Signal to noise ratio: 90dB
Movin coll cartridge input
Input sensitivity impedance: 210 uV/100 ohm
Signal to noise ratio: 75dB
Tuner/CD/Aux/Tape inputs
Input sensitivity impedance: 160mV/20 k ohm
Signal to noise ratio: 111dB
Frequency response (-1dB limits): 10Hz - 100kHz
Channel separation (1kHz/10kHz) >87dB/>70dB
General
Power requirements
/50B version: 230V ac 50/60Hz
Dimension (wxhxd): 420x165x392mm
Weight: 12.5kg

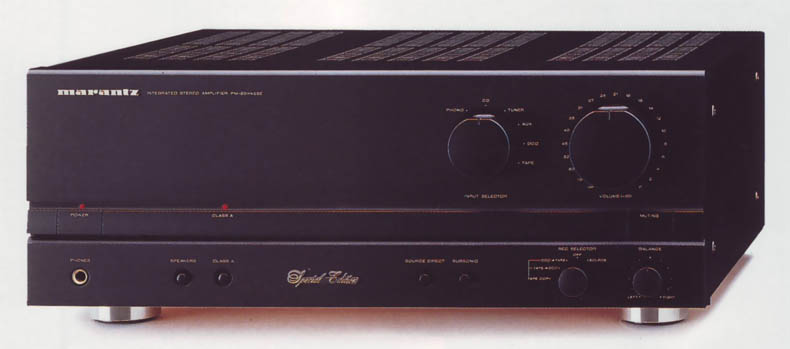

| Click to enlarge photo |
||||||
 |
 |
 |
||||
 |
 |
 |
||||
 |
 |
 |
||||
 |
 |
 |
||||
