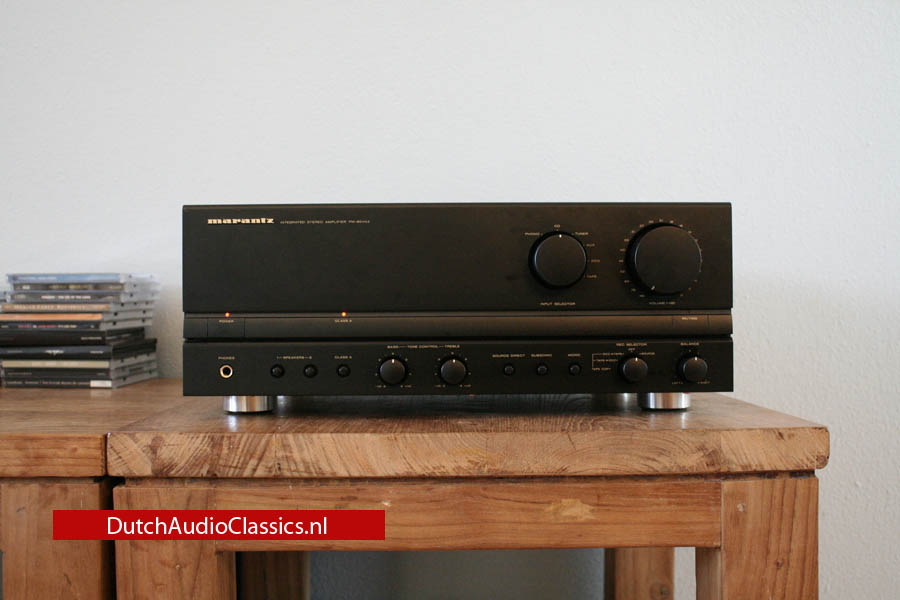

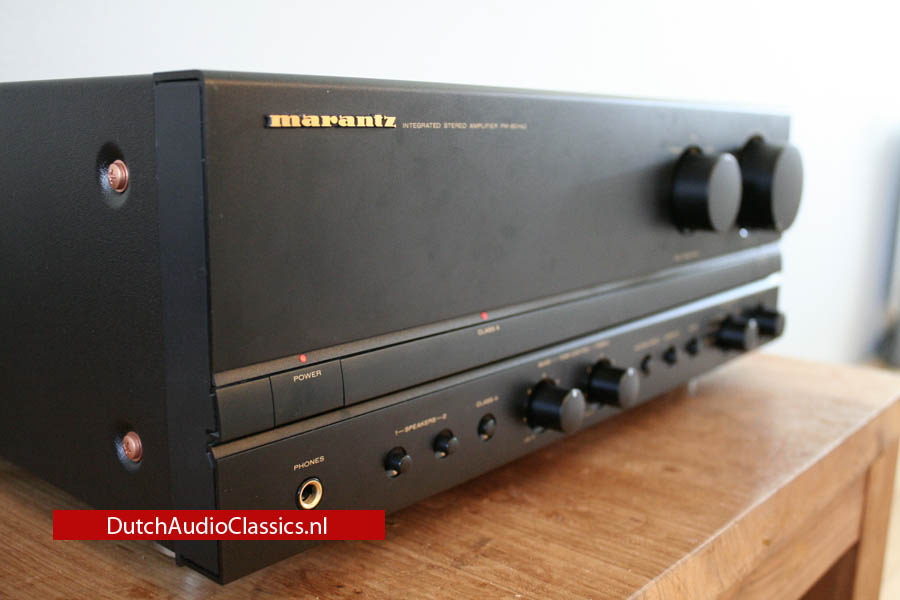

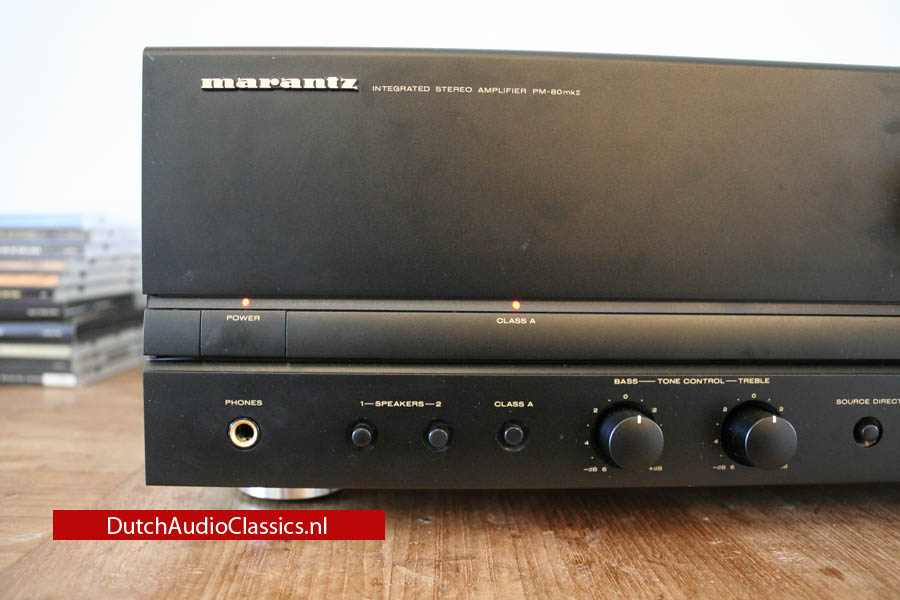

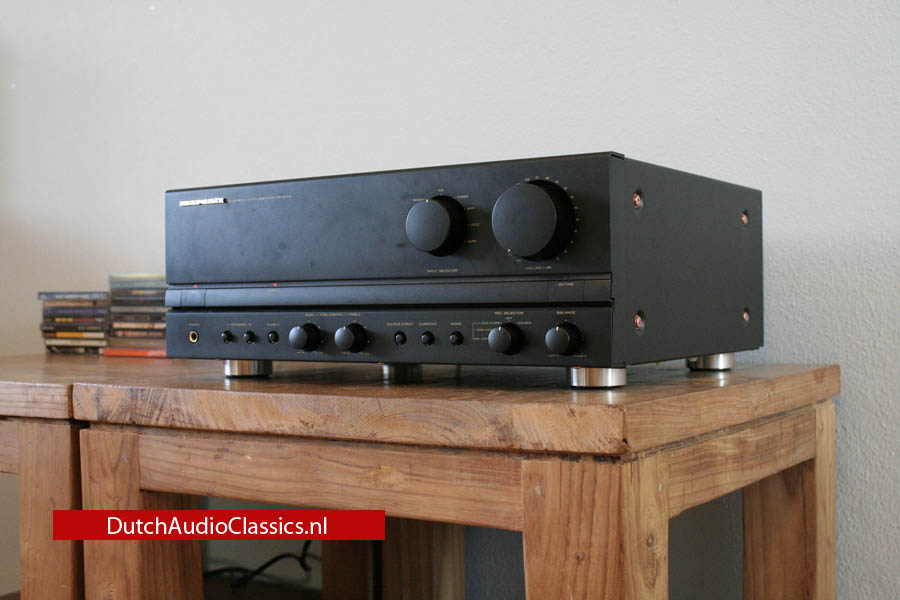

Specifications Marantz PM80 mkII

Power output
RMS 8 Ohms (20Hz - 20kHz): 100 / 25W (Class A)
DIN 8 Ohms / 4 Ohms: 110 / 160W

IHF Dynamic power
8 Ohms / 4 Ohms / 2 Ohms: 135 / 220 / 340W
Total harmonic distortion at 8 Ohms RMS rated output: 0.006%
Intermodulation distortion: 0.006%
Damping factor: 120

Magnetic cartridge output
Input sensitivity impedance: 2.8mV / 47 kOhm
Accuracy of frequency response to RIAA: 0.3dB
Signal to noise ratio: 89dB

Moving coil cartridge input
Input sensitivity impedance: 220µV / 100Ohm
Signal to noise ratio: 70dB

Tuner / CD / AUX / Tape inputs
Input sensitivity impedance: 170mV / 20kOhm
Signal to noise ratio: 111dB
Frequency response (-1db limits): 10Hz - 100kHz

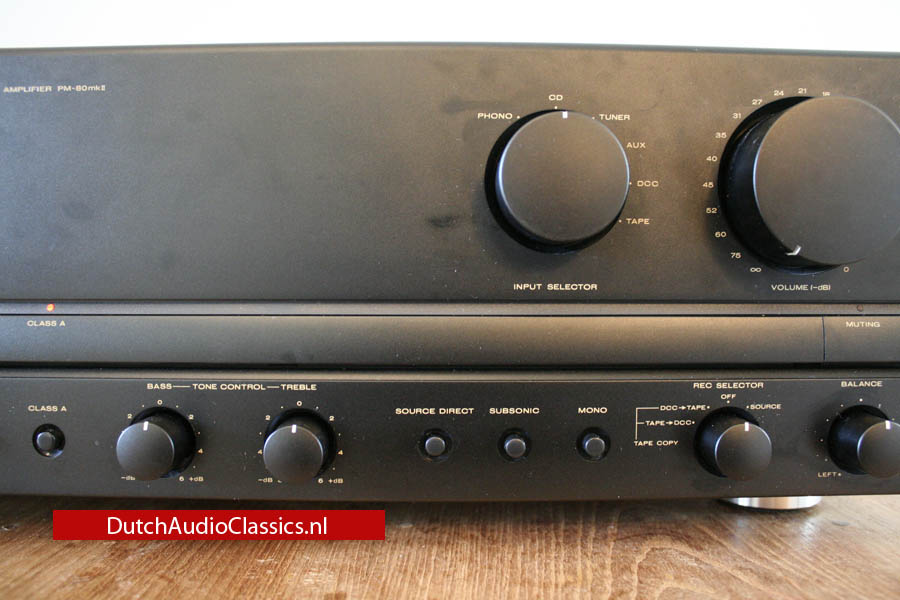

Tone characteristics (100Hz and 10kHz): ±7dB
Channel separation: (1kHz / 10kHz): >85dB / >65dB

General
Power requirements

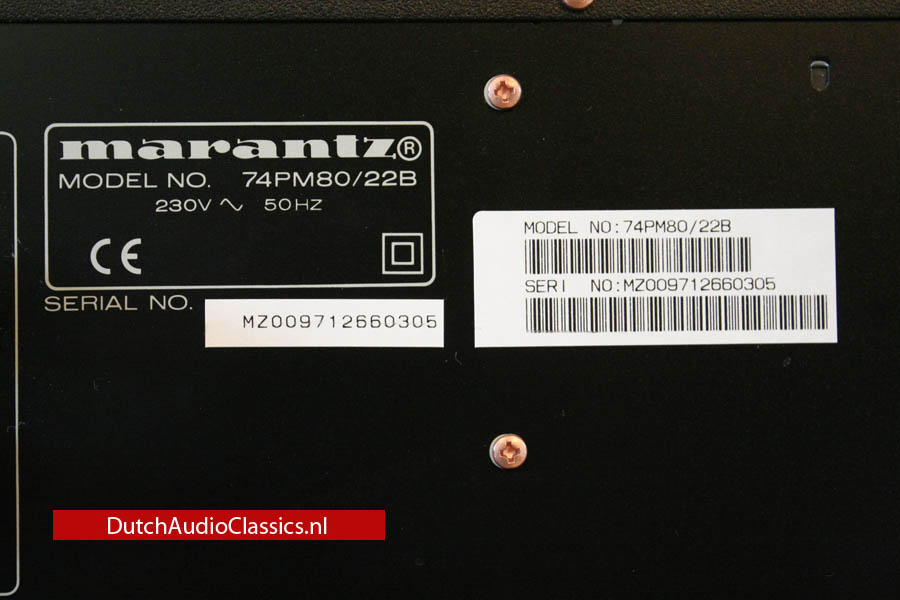

/20B version: 230V AC, 50 / 60Hz
/21B version (4 voltages): 110 / 120 / 220 / 240V AC, 50 / 60Hz
Dimensions (WxHxD): 420x146x334mm
Weight: 13kg
