The Marantz Music Link series was designed with a specific goal in mind: To provide absolutetly state-of-the-art-sonic performance in a rarely seen design package noted for both its advanced construction and its understated beauty. Judging from highly positive reactions to the Marantz Music Link Series by audiophiles both internationally and on American shores, Marantz has achieved their goal.

The Marantz Music Link Series consists of the Marantz SC-22 active line-stage control amplifier, the Marantz PH-22 phono preamplifier, and the Marantz MA-22 and Marantz MA-24 mono-block amplifiers. The Marantz SC-22 control amplifier and optional Marantz PH-22 phono amplifier are designed to serve as the "front-end" of the Music Link audiophile system. Users can choose between the 50-watt Marantz MA-22 Class AB mono power amp, or the 30-watt Class A mono Marantz MA-24.

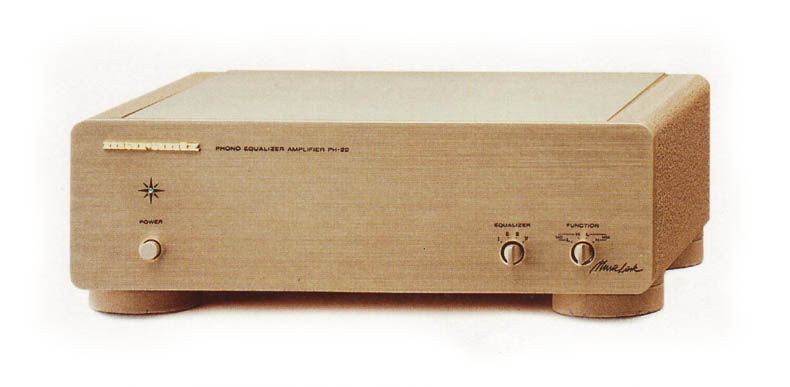

Audiophile phono amplifier/equalizer for Marantz Music Link Series
Half-size chassis
High-spec, permalloy-core, ultra-low noise moving-coil transformers
Discrete FET Class A low-noise moving-magnat amplifier
Adjustable output level for matching to other sources via Marantz SC-22 control amplifier
Four EQ settings: IEC/RIAA, Europe Standard Play 1 and Europe Standard Play 2 and Flat/No EQ setting
Fully isolated, low-noise power supply
Diecast, non-magnetic alloy, copper-plated chassis and case

Specifications Marantz PH22:
Input sensitivity / input impedance:
MM low impedance: 3.0mV / 1 k-ohms
MM high impedance: 3.0 / 47 k-ohms
MC low impedance: 100µV / 100 ohms
MC high impedance: 300µV / 100 ohms
Phono overload (MM high, 1 kHz): >250mV
Output attenuator range: 0dB - 14dB

Equalizer curves (turnover/roll-off)
IEC / RIAA: 500Hz/2.2kHz
Europe SP I: 250Hz
Europe SP II: 250Hz/5.8kHz
Old SP: Flat/no EQ
