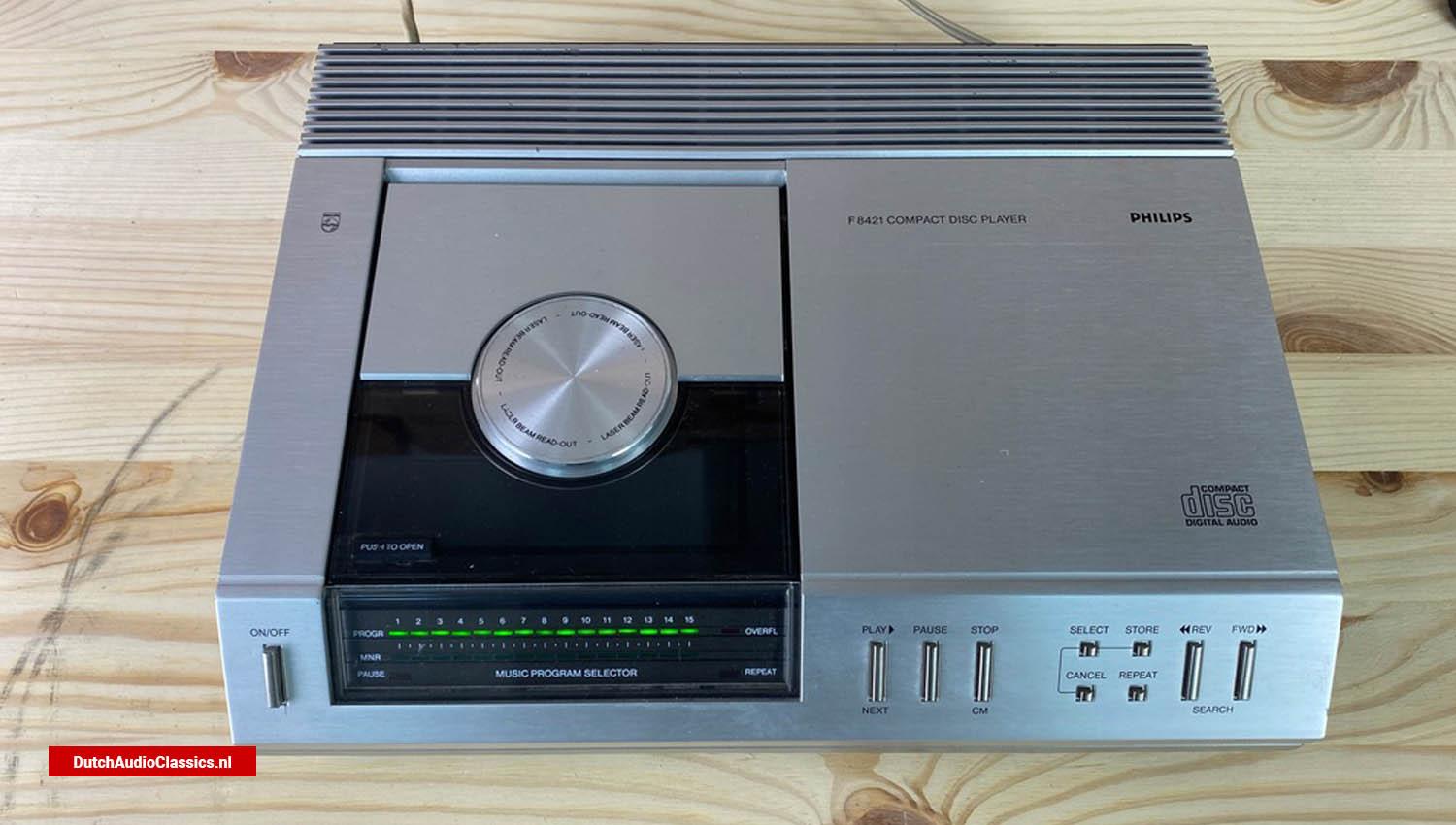

Philips F8421 = Philips CD100

Originally, Philips intended to market the CD100 with the type designation "F8421. In fact, the Philips F8421 was sold in Canada in audio stores:


The Philips F8421 came on the market at the end of '82 in Canada, where we lived at that time, and was bought the day after by my brother. My old man remained steadfast and waited for the first Luxman-Silberling reader, which was still a long time coming.

I myself, with my 16 years, still had nothing to oppose. Years later, however, I bought the Kenwood DP-1000 as my first CD player - only to suffer a shameful defeat in a cross-comparison with my brother's (still active today!) F8421. Already the reading ability of defective CDs was in the Dutchman's class better! By the way, my CD380 in my office, which was added sometime ago, also stands out from the rest of the masses. Optically unpretentious, puristic in terms of equipment, but probably still absolutely readable under boiling water.

source

Philips F8421 cd100 compact disc player 1982 Philips F8421 Philips F8421 compact disc player - November 1982

Review Philips F8421

Things are getting serious with the digital disk. In the spring of next year a number of manufacturers will come onto the market with their CD players - in a concerted action with the record suppliers, of course. Philips offered us the opportunity to give a glimps of the future with its F8421 compact disc model.

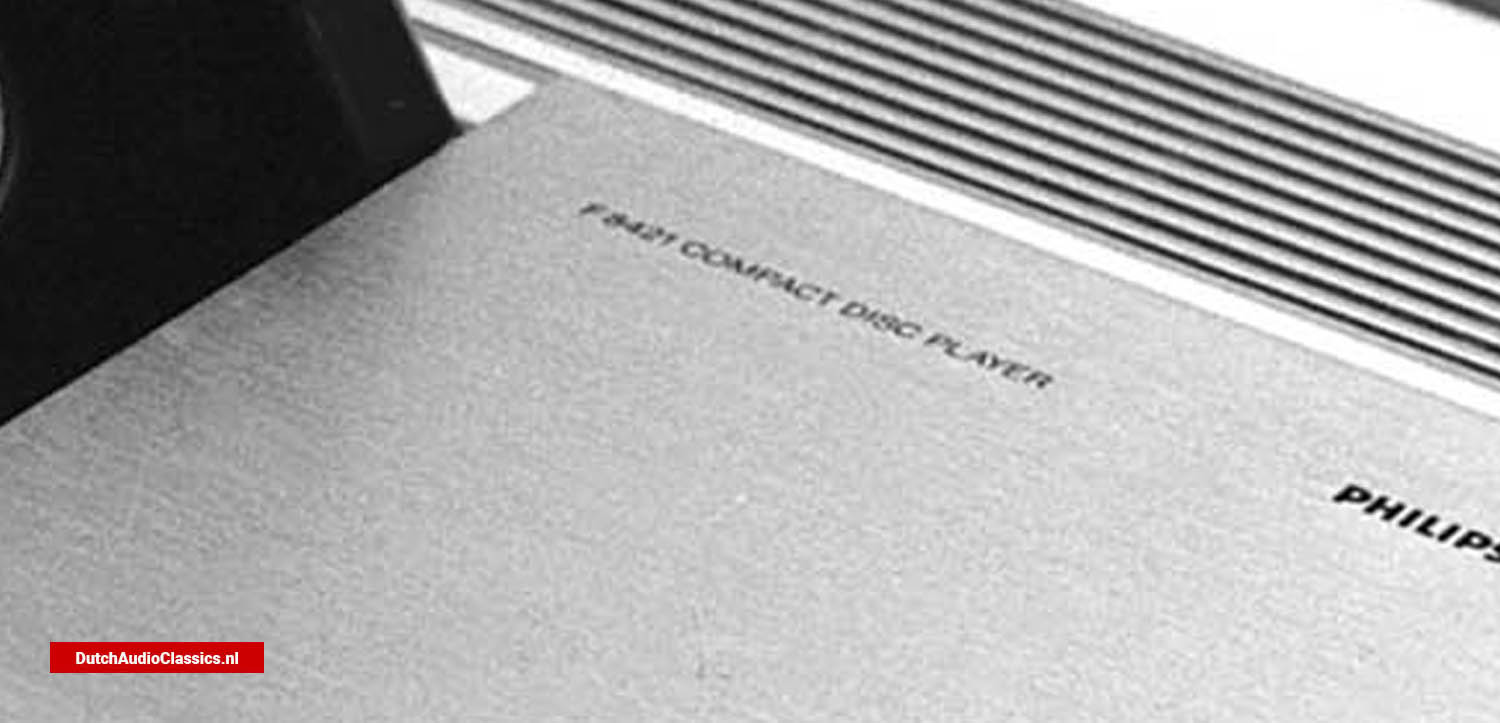

It was only 2 years ago that Philips and Sony introduced the Compact Disc System. Philips brings to the market a compact and flat silver compact disc player, the Philips F8421.

Impressive

With the F8421, Philips introduced a compact disc player of which its electronic and mechanical concept shows impressively how far the Dutch Pioneers have already advanced.

The laser scanning unit is on mounted on a swivel arm whose head can also perform vertical movements. This can compensate for any deviations in the height and distortion of the panel material.

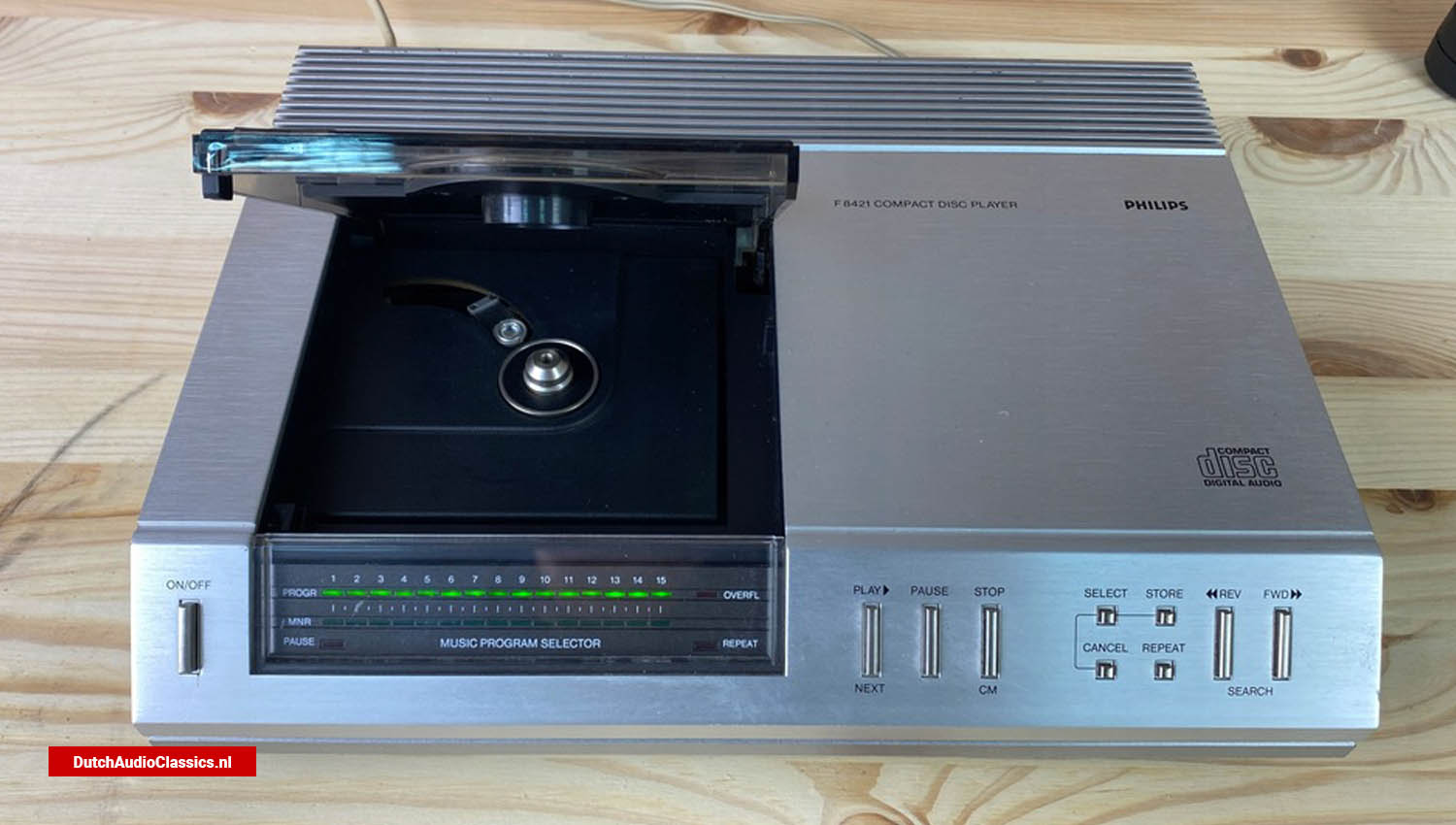

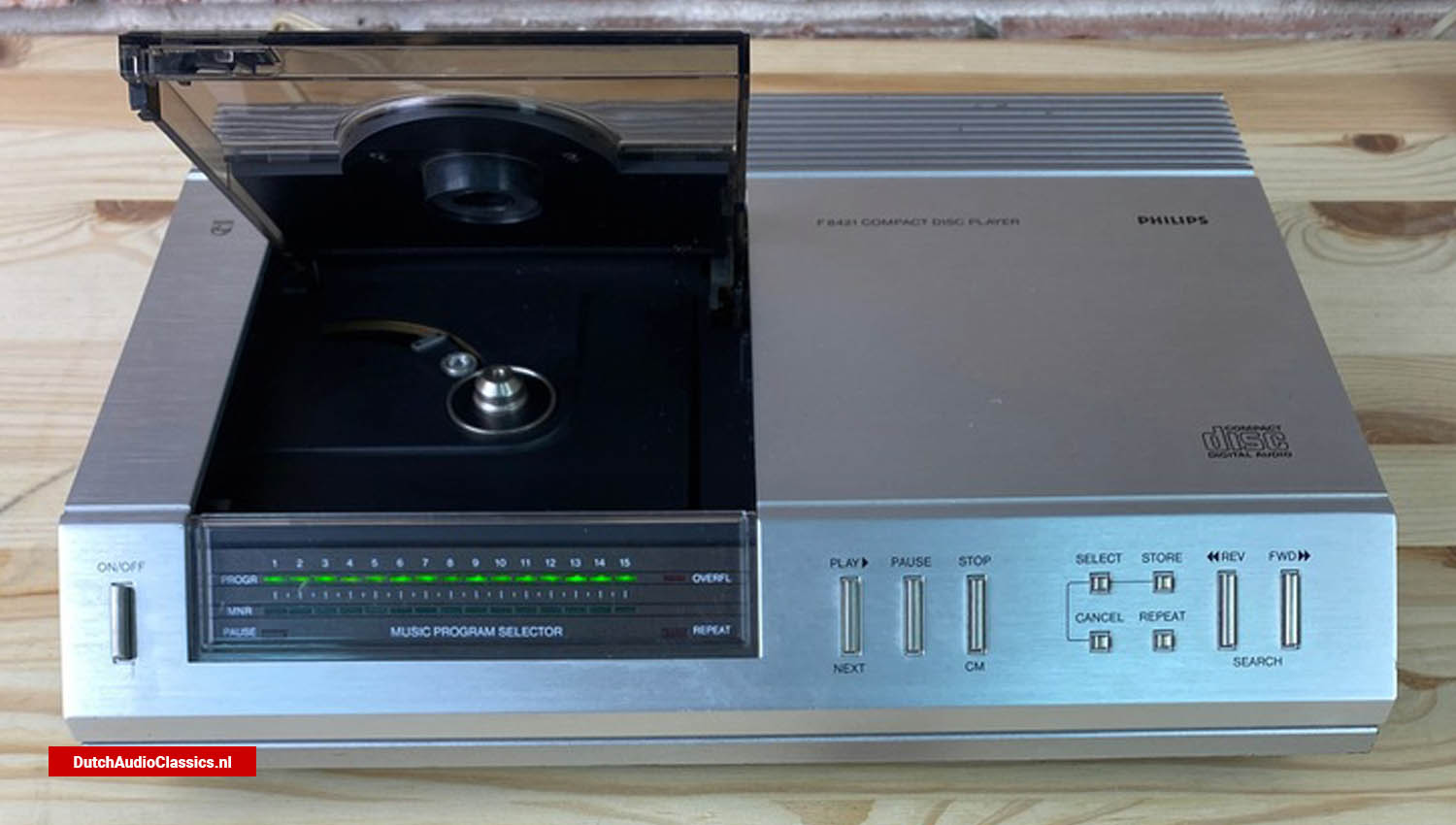

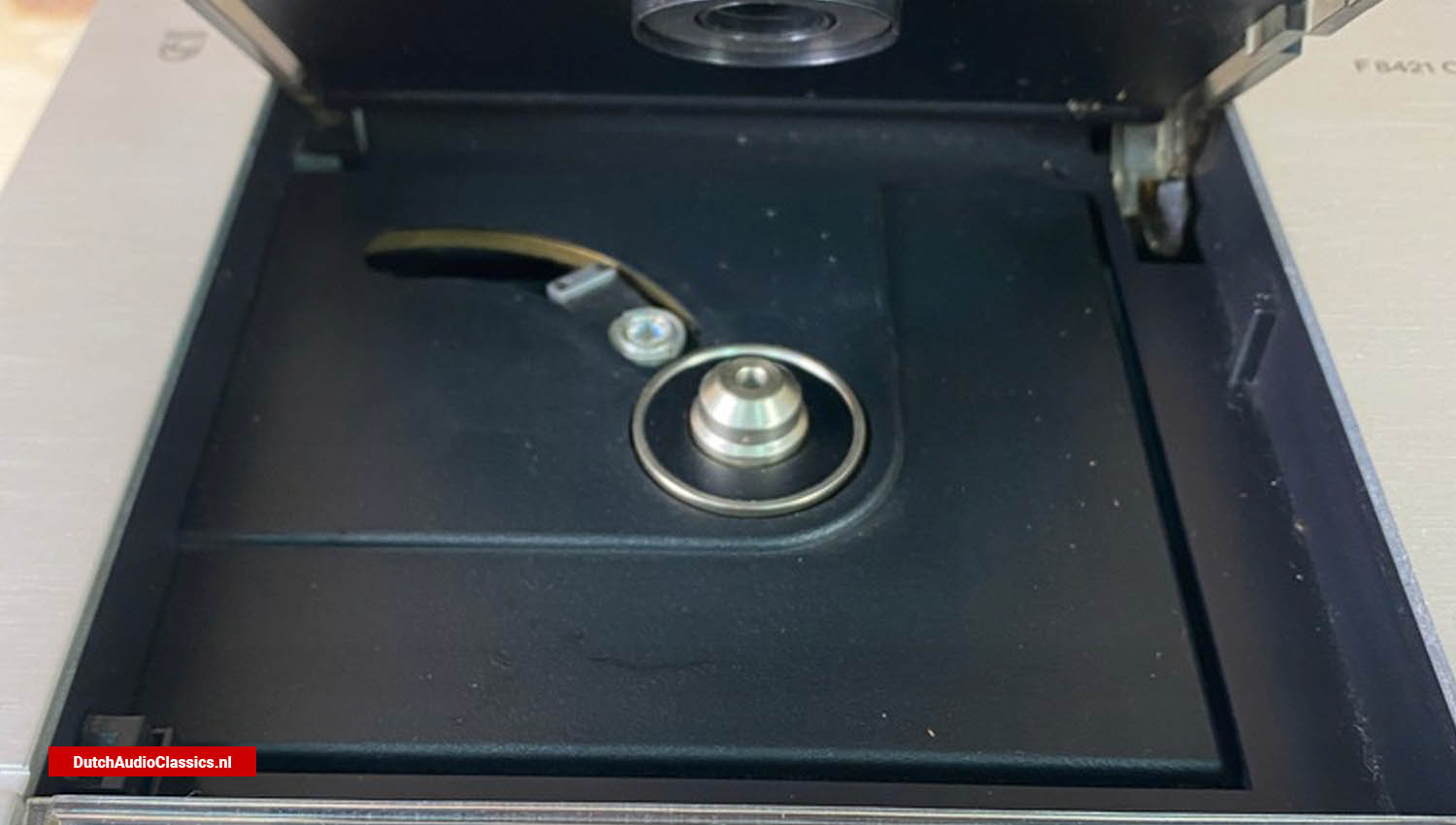

Inserting the digital disc into the top loader of the F8421 is done manually and without any complications. A flap closes the disk compartment. Because of this concept, the Philips F8421 could be made extremely compact and flat.

Philips F8421 compact disc player 1982 Philips F8421 compact disc player - November 1982

Functions and program

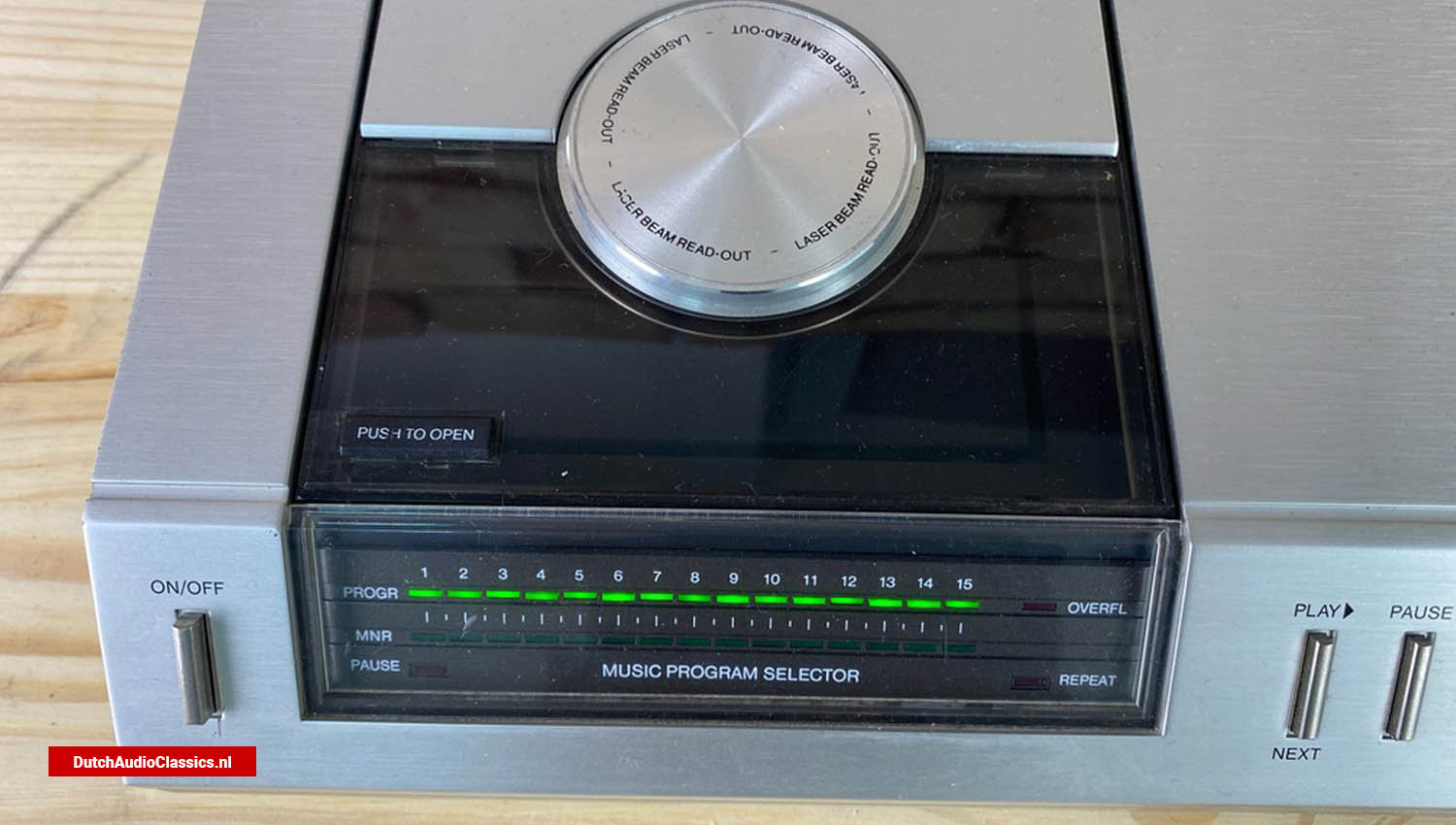

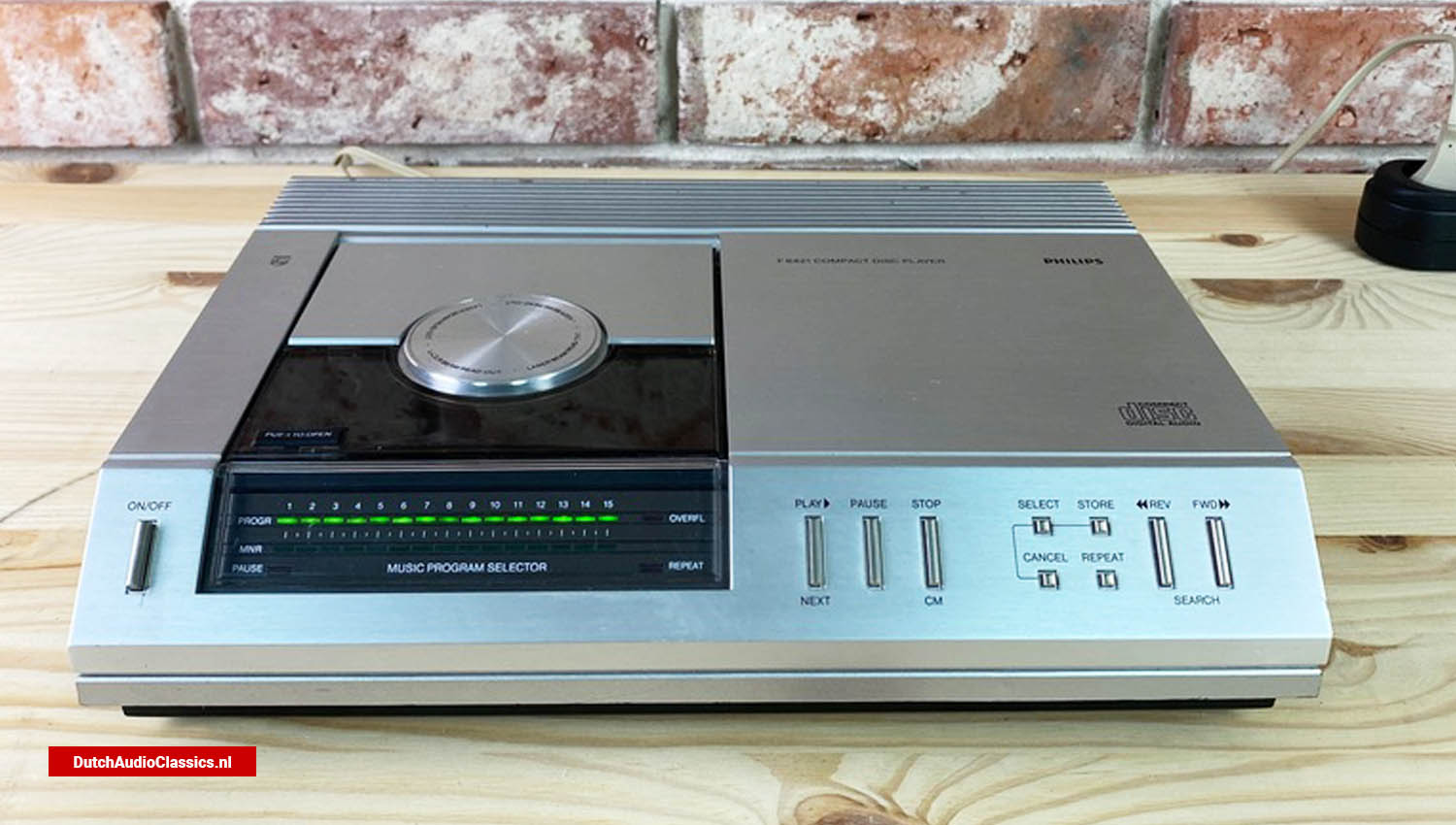

On the front, a row of LEDs indicates the number after the CD has been inserted. A chain of LEDs visualize the number of songs on the CD.

The basic funtions 'Play', 'Next', 'Pauze', 'Stop', 'Prev Search' and 'Next Search' are all present. It is also possible to program a sequence of songs.

Music reproduction

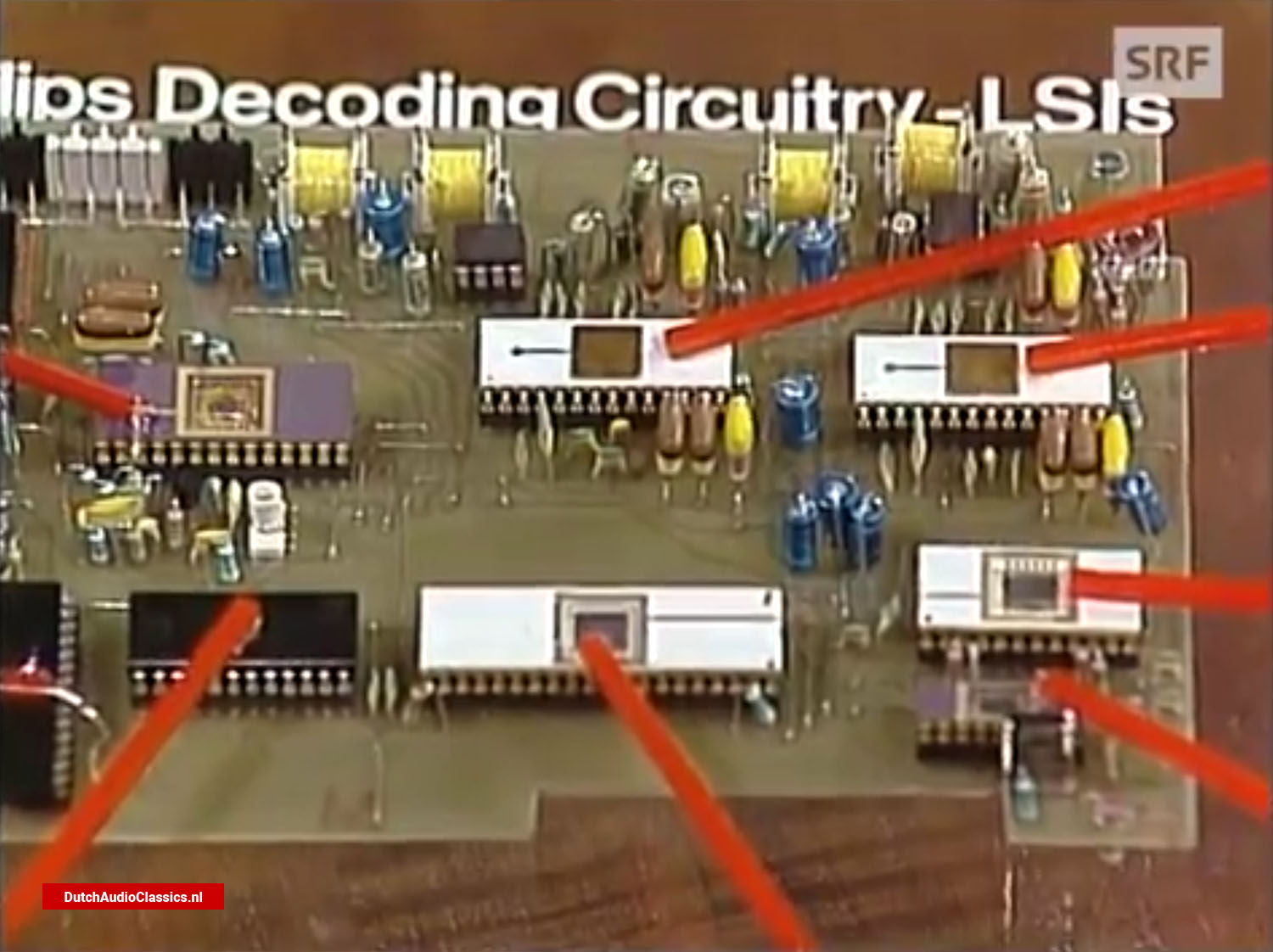

Since every background noise such as crackling, hissing, etc. entirely is missing, the music starts playing out of nowhere and then to end in complete silence. The Philips F8421 does it with one nifty circuit for that Digital-to-analog conversion to interpolate missing music information, e.g. caused by pollution.

In case of big imperfections on the compact disc, the signal fades out discreetly. The laser gradually overcomes the obstacle and the signal starts again.

High class quality

This first hearing impression confirmes the quality of playback of the Philips F8421 is high class.

PhonoForum November 1982




Video showing a Philips F8421

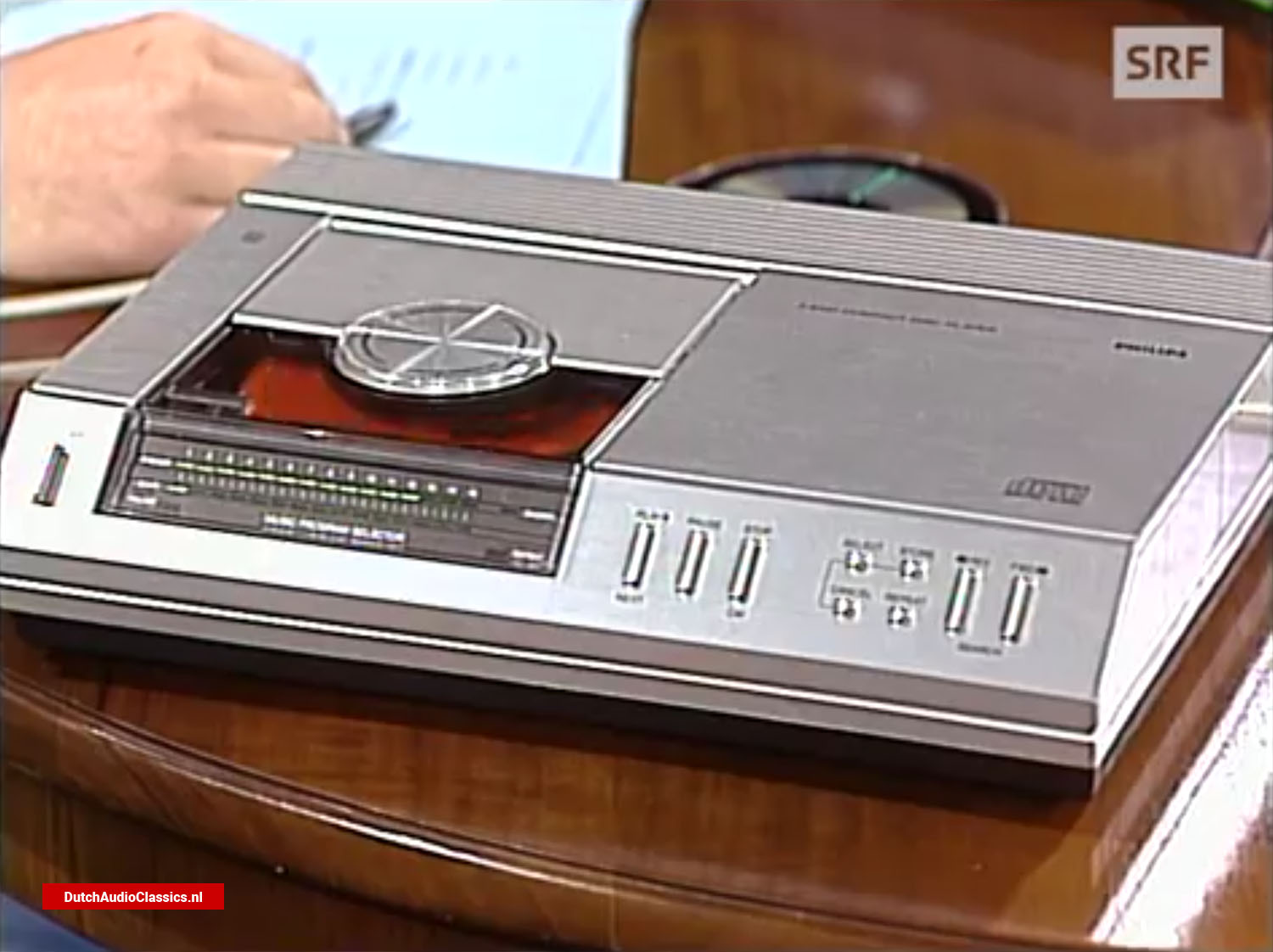

In 1982 the Swiss SRF (Schweizer Radio und Fernsehen) broadcast an interview with Bernhard Mann demonstrating the Compact Disc System. In the broadcast the Philips F8421 was used to demo the Compact Disc system.

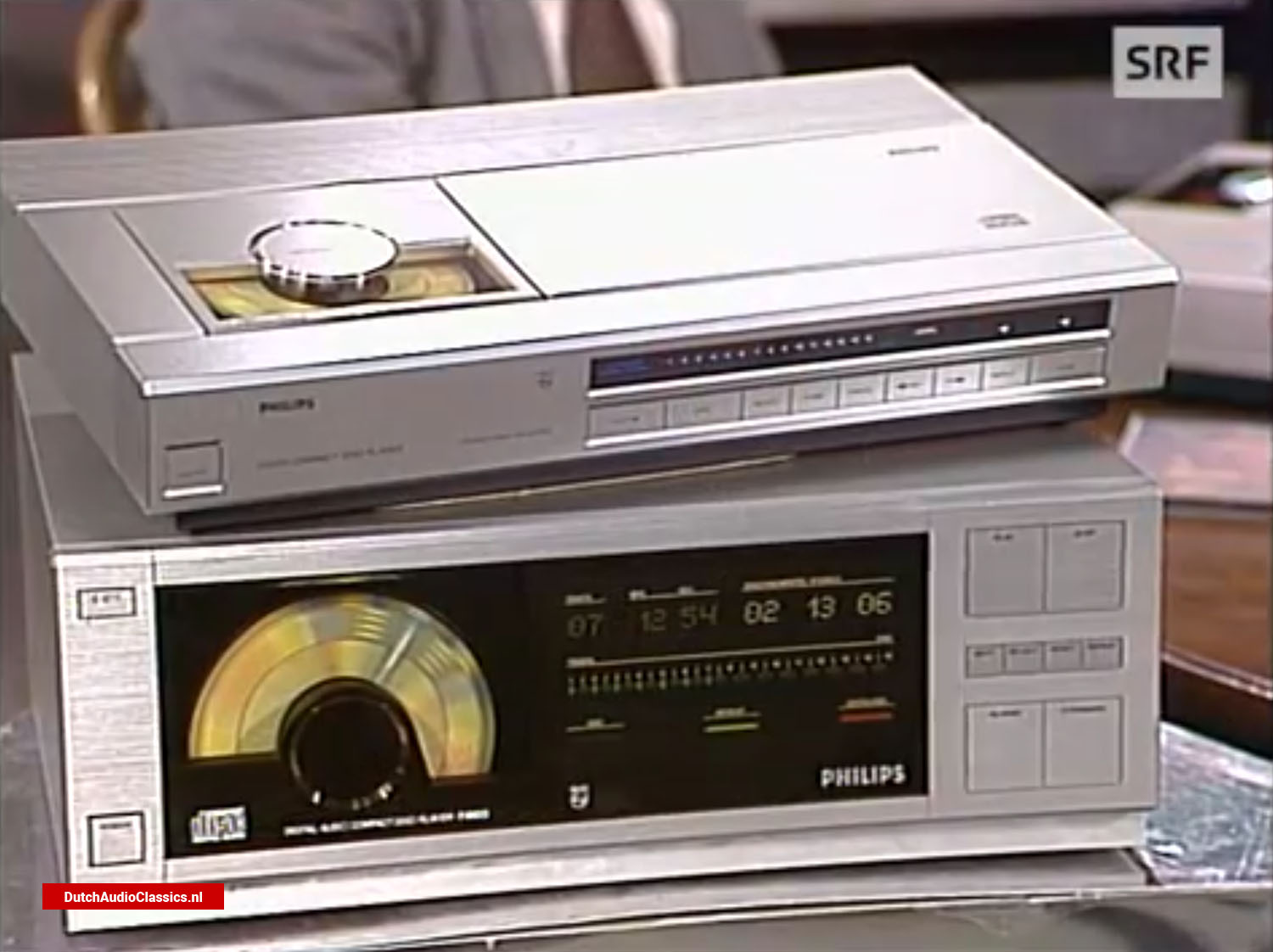

Also visible in the broadcast is the 420mm Philips F5822 prototype compact disc player and the Philips F6532 prototype compact disc player. Both compact disc players have not been manufactured for consumer purposes.
