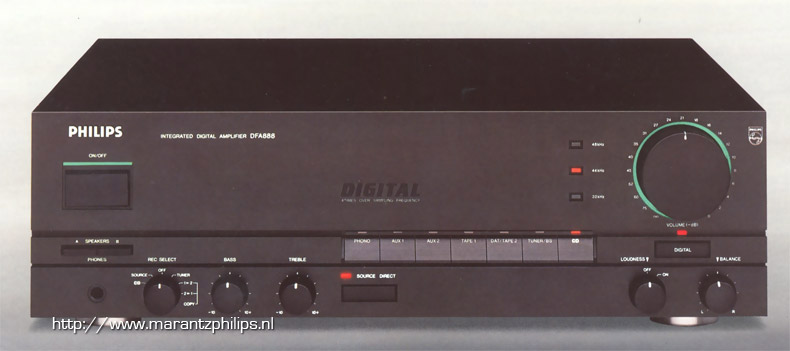

Specifications Philips DFA-888

Power output acc. to FTC
at 8 ohm load (20-20.000Hz, D<= 0.03%): 75W continuous sine wave
at 4 ohm load (20-20.000Hz, D<= 0.05%): 90W continuous sine wave at 4 ohm load

Power output acc. to IEC
at 8 ohm load (63-12.500Hz, D<= 0.03%): 80W continuous sine wave

Power output acc. to DIN (1kHz, D<= 0.7%)
at 8 ohm load: 85W continuous sine wave
at 4 ohm load: 115W continuous sine wave
at 2 ohm load: 140W continuous sine wave

IHF music power
at 8 ohm load: 95W
at 4 ohm load: 140W
at 2 ohm load: 160W
Harmonic distortion (1kHz): 0.01%
Intermodulation distortion: 0.03%
Power bandwidth (-3dB): 10-30.000Hz
Frequency response: 20-20.000Hz ±0.5dB
S/N ratio: 90dB (weighted)
Channel separation (1kHz): 70dB
Damping factor at 8 ohms: 80

Input sensitivity
Phono MC: 0,25mV/150 ohm
Phono MM: 2,5mV/47 kohm
Compact Disc: 150mV/20 kohm
Tuner: 150mV/20 kohm
Aux 1: 150mV/20 kohm
Aux 2: 150mV/20 kohm
Tape 1: 150mV/20 kohm
DAT/Tape 2: 150mV/20 kohm
Compact Disc optical: 1 x Toslink
Compact Disc: 0,5V p-p/75 ohm
DBS/Aux: 0,5V p-p/75 ohm
DAT/Play/Rec: 0,5V p-p/75 ohm


DAT/Tape: 150mV/550ohm
2x2 loudspeakers: 4-8 ohm
Headphones: 8-1000 ohm

Tone control
bass: +8 dB to -8 dB at 100 Hz
treble: +8 dB to -8 dB at 10kHz
Loudness: +6 dB at 100Hz, +4 dB at 10 kHz
Balance control: 0-never ending dB
Power consumption: 330W
