Specifications Philips SACD1000

Playback system
Super Audio CD
DVD video
Video CD
Audio CD (CD-R and CD-RW)

Optical readout system
Laser type:  Semiconductor AlGaAs
Numerical Aperture:  0.60 (SACD/DVD)
0.45 (VCD/CD)
Wavelength:  650nm (SACD/DVD)
780nm (VCD/CD)

Audio format
Digital:
DSD (uncompressed digital):
Dolby digital (Compressed digital)
DTS/MPEG
PCM 16, 20, 24 bit
fs, 48, 96 kHz
Analog Sound Stereo
Dolby surroundTM downmix from multi-channel sound
3D sound for virtual 5.1 channel sound on 2 speakers

SACD audio performance
Multichannel output (DSD stereo/multichannel)

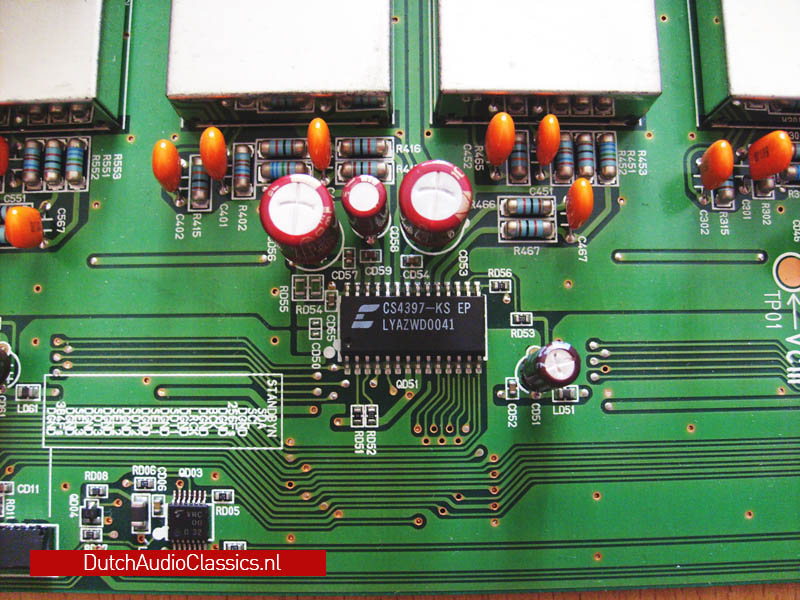

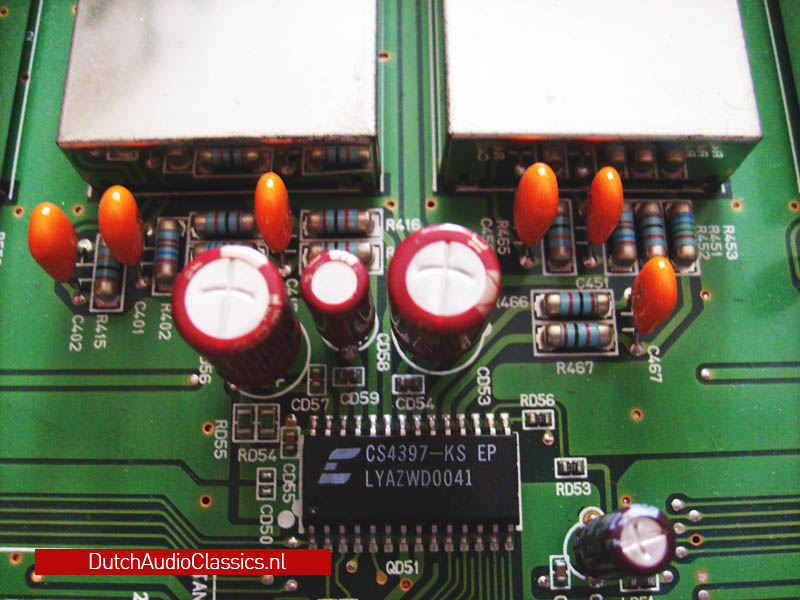

DA Converter:  1 bit
SACD:  fs 2.8 MHz DC-100kHz
Max output voltage (0dB):  2Vrms ±0.3V
Channel unbalance:  <0.5dB
Cut-off frequency normal mode:  40kHz ±5kHz
Cut-off frequency custom mode:  50kHz ±5kHz
typical
Normal Custom
Amplitude linearity:  +0.1/-0.6 +0.1/-0.4
Total harmonic distortion and noise (1kHz):  -100 dB -102 dB
Total harmonic distortion and noise (20Hz - kHz):  -88 dB -95 dB
Inter-modulation distortion:  -107 dB -112 dB
Dynamic range:  -114 dB -111 dB
Low level linearity (0 . -100 dB):  < +/- 0.1 dB
Low level linearity (0 . -115 dB):  < +/- 0.5 dB
Inter-channel phase:  < 1 degree
Crosstalk (1kHz):  -130 dB
Crosstalk (20 Hz - 20 kHz):  -100 dB

DVD/VCD/CD performance
DA Converter:  24 bit
DVD:  fs 96 kHz 4 Hz - 44 kHz
fs 48 kHz 4 Hz - 22 kHz
Video CD:  fs 48 kHz 4 Hz - 22 kHz
CD:  fs 44.1 kHz 4 Hz - 20 kHz
Signal-Noise (1kHz):  > 100 dB
Dynamic Range (1kHz):  > 90 dB
Crosstalk (1kHz):  > 105 dB
Distortion Noise (1kHz):  > 90 dB

TV STANDARD
EUROPE (PAL/50Hz) USA (NTSC/60Hz)
Number of lines:  625 525
Playback:  Multistandard (PAL/NTSC)

VIDEO FORMAT
Signal:  Digital
Signal handling:  Components
Digital Compression:  MPEG2 for DVD,
MPEG1 for VCD

VIDEO PERFORMANCE
Video output:  1 Vpp into 75 ohm
S-Video output:  Y: 1 Vpp into 75 ohm
C: 0.300 Vpp into 75 ohm
RGB output:  0.7 Vpp into 75 ohm
YPRPB output:  Y: 1Vpp into 75 ohm
PR: 0.7 Vpp into 75 ohm
PB: 0.7 Vpp into 75 ohm
Black Level Shift:  On/Off
Video Shift:  Left/Right

CONNECTIONS
Scart:  2 Euroconnector
S-Video Output Mini DIN, 4 pin
Video Output 2 Cinch (yellow)
YPRPB Output:  3 Cinch

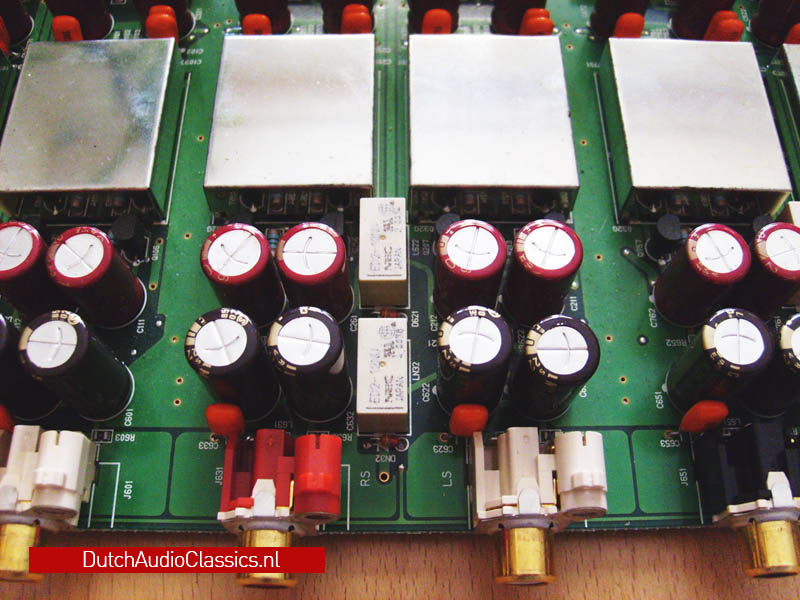

Analog Audio L+R output:  2 Cinch (white/red)
Digital Audio Output:  1 coaxial, 2 optical
IEC1937 for MPEG1, MPEG2 and AC-3
IEC61937 for DTS

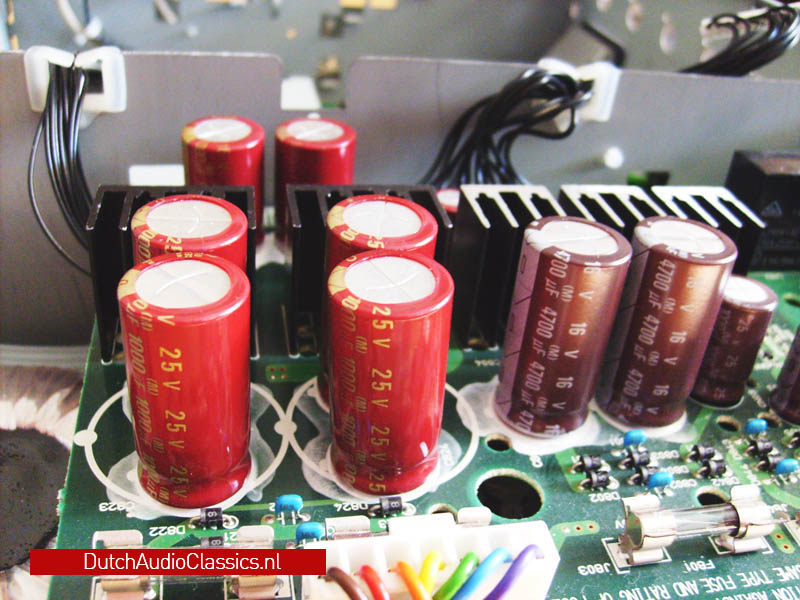

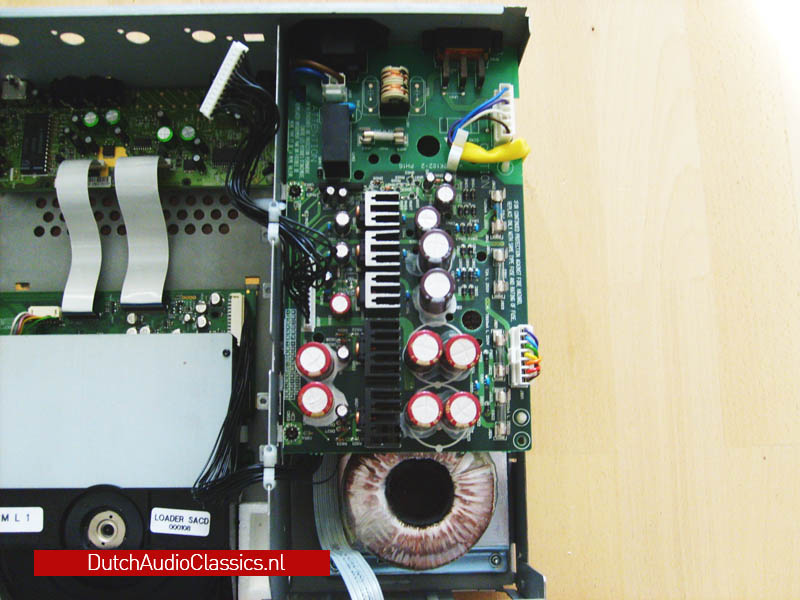

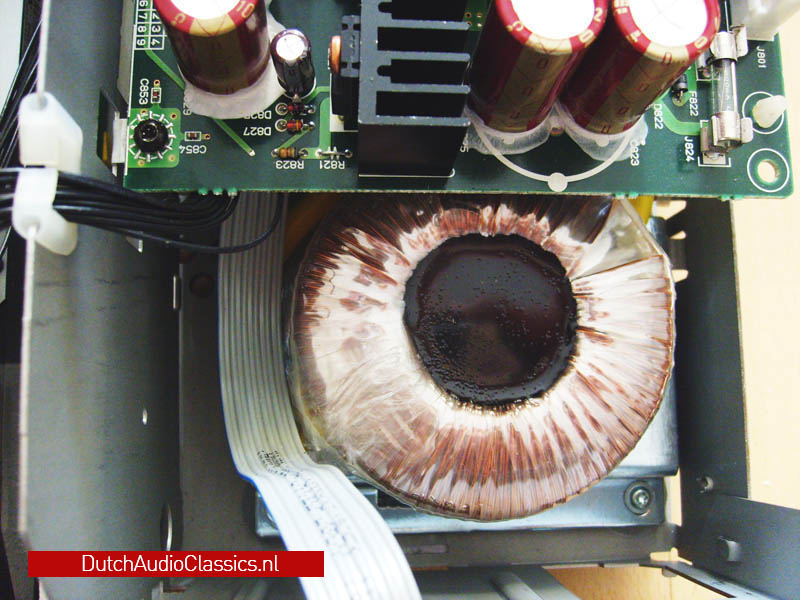

POWER SUPPLY (UNIVERSAL)
Power Inlet:  100-120V/220-240V, 50/60Hz
Power consumption:  36 Watt
Power consumption standby:  less than 10 Watt

CABINET
Dimensions:  435 x 110 x 330 mm (w x h x d)
Weight:  approx. 10kg
